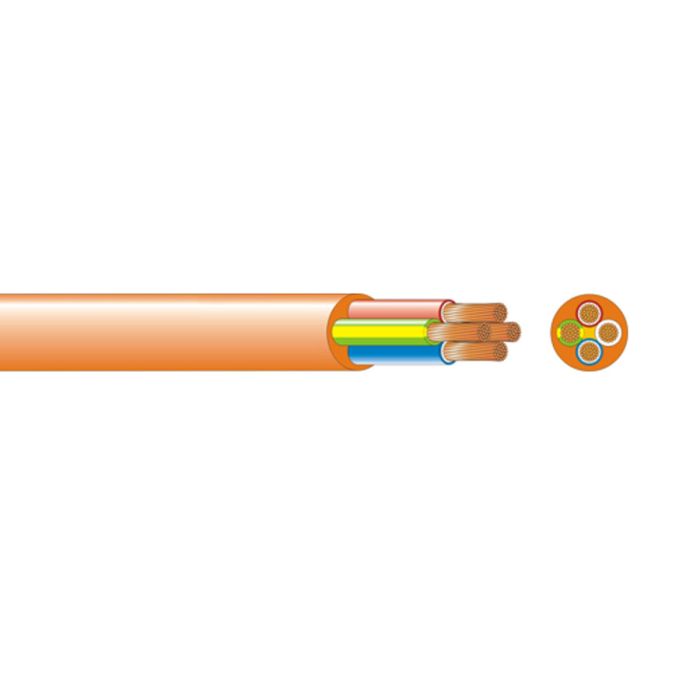

Electra Flexible Cable 4 Core & Earth 6mm 0.6/1kV Plain Annealed Copper PVC/PVC Orange
Electra Flexible Cable 4 Core & Earth 6mm 0.6/1kV Plain Annealed Copper PVC/PVC Orange
In stock
SKU
ELCFSRC4060E
Flexible Cable, 6 mm, Class 6 Annealed Copper, 0.6-1 kV, 4 Core + Earth, 2x7/1.04 mm + 7/0.67 mm Earth Strands, 17 mm Overall Diameter, 6 mm Earth Conductor, 1 mm Insulation Thickness, 1.8 mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1 AS/NZS 1125 IEC 60228 AS/NZS 3008.1
| Brand | Electra |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FSRC4060E |
| Conductor Size | 6 mm |
| Conductor Type | Class 6 Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Earth Conductor Size | 6 mm |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 1 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 17 mm |
| Product Type | Flexible Cable |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 AS/NZS 1125 IEC 60228 AS/NZS 3008.1 |
| Temperature | 90 deg C |
| Stranding | 2x7/1.04 mm + 7/0.67 mm Earth |
| Voltage | 0.6-1 kV |
Description
Flexible Cable, 6 mm, Class 6 Annealed Copper, 0.6-1 kV, 4 Core + Earth, 2x7/1.04 mm + 7/0.67 mm Earth Strands, 17 mm Overall Diameter, 6 mm Earth Conductor, 1 mm Insulation Thickness, 1.8 mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1 AS/NZS 1125 IEC 60228 AS/NZS 3008.1
