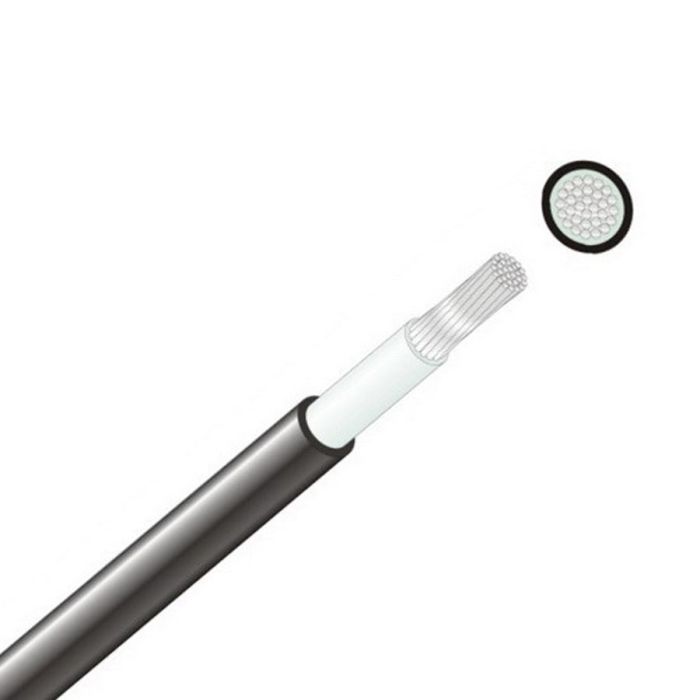

Electra Circular Power Cable XLPE 1 Core 120mm 0.6/1kV Class 5 Aluminium XLPE/PVC Flexible
Electra Circular Power Cable XLPE 1 Core 120mm 0.6/1kV Class 5 Aluminium XLPE/PVC Flexible
In stock
SKU
ELCFALX11200
Circular XLPE Cable, 120 mm, Class 5 Aluminium, 0.6-1 kV, 1 Core, 600/0.5 mm Strands, 22.2 mm Overall Diameter, 1.2 mm Insulation Thickness, 1.6 mm Sheath Thickness, DC: 0.271 Ohm/km Conductor Resistance, X-90 XLPE Insulation, Natural Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 3008.1 AS/NZS 5000.1 AS/NZS 1125
| Brand | Electra |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FALX11200 |
| Conductor Resistance | DC: 0.271 Ohm/km |
| Conductor Size | 120 mm |
| Conductor Type | Class 5 Aluminium |
| Insulation Colour | Natural |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 1.2 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 22.2 mm |
| Product Type | Cables Circular |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.6 mm |
| Standards | AS/NZS 3008.1 AS/NZS 5000.1 AS/NZS 1125 |
| Temperature | 90 deg C |
| Stranding | 600/0.5 mm |
| Voltage | 0.6-1 kV |
Description
Circular XLPE Cable, 120 mm, Class 5 Aluminium, 0.6-1 kV, 1 Core, 600/0.5 mm Strands, 22.2 mm Overall Diameter, 1.2 mm Insulation Thickness, 1.6 mm Sheath Thickness, DC: 0.271 Ohm/km Conductor Resistance, X-90 XLPE Insulation, Natural Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 3008.1 AS/NZS 5000.1 AS/NZS 1125
