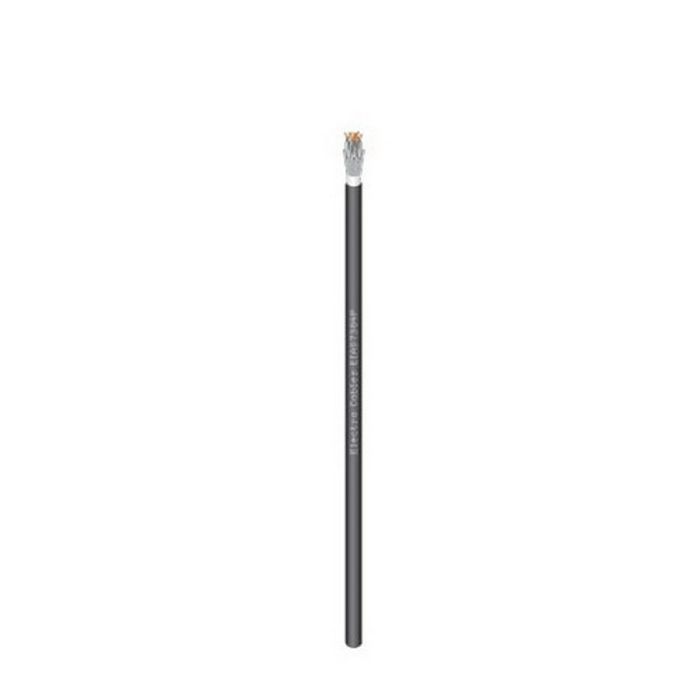

Electra 0.22mm 2 Pair Grey Data Cable Overall Screened Polypropylene/PVC
Electra 0.22mm 2 Pair Grey Data Cable Overall Screened Polypropylene/PVC
In stock
SKU
ELCEAS7202P
Data Cable, 0.22 mm, Tinned Annealed Copper, 0.3 kV, 2 Pair, 7/0.2 mm Strands, Overall Screened Screen, 5.7 mm Overall Diameter, 0.8 mm Sheath Thickness, 8.6 Ohm/100m Conductor Resistance, Aluminum/Polyester Mylar Tape Screen, Blue/White/Orange Core, Polypropylene Insulation, 4V-75 PVC Sheath, Grey Sheath, AS/NZS 1125 AS/NZS 3808
| Brand | Electra |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | EAS7202P-100 |
| Conductor Resistance | 8.6 Ohm/100m |
| Conductor Size | 0.22 mm |
| Core Colours | Blue/White/Orange |
| Conductor Type | Tinned Annealed Copper |
| Insulation Material | Polypropylene |
| Number of Pairs | 2 Pair |
| Overall Diameter | 5.7 mm |
| Product Type | Data Cable |
| Screen Format | Overall Screened |
| Screen Material | Aluminium/Polyester Mylar Tape |
| Sheath Colour | Grey |
| Sheath Thickness | 0.8 mm |
| Sheath Material | 4V-75 PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Stranding | 7/0.2 mm |
| Voltage | 0.3 kV |
Description
Data Cable, 0.22 mm, Tinned Annealed Copper, 0.3 kV, 2 Pair, 7/0.2 mm Strands, Overall Screened Screen, 5.7 mm Overall Diameter, 0.8 mm Sheath Thickness, 8.6 Ohm/100m Conductor Resistance, Aluminum/Polyester Mylar Tape Screen, Blue/White/Orange Core, Polypropylene Insulation, 4V-75 PVC Sheath, Grey Sheath, AS/NZS 1125 AS/NZS 3808
