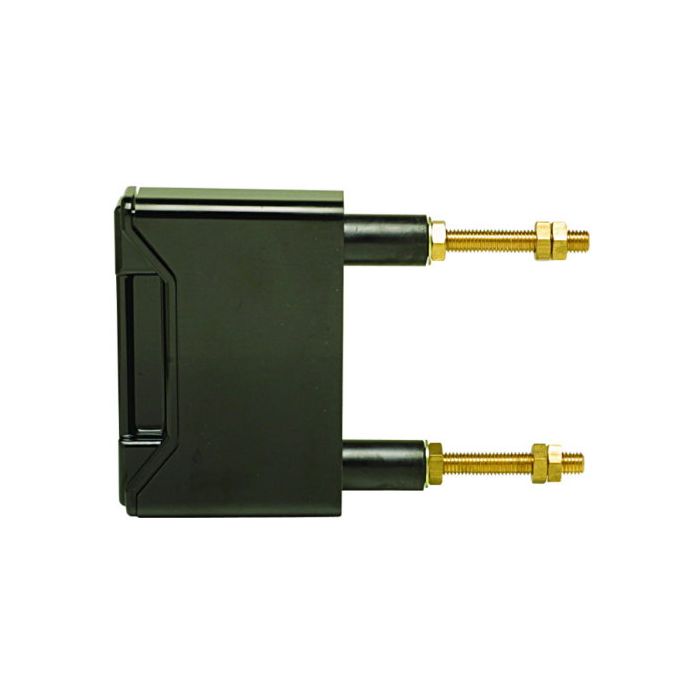

IPD Fuse Holder BS88 A2/A3 63A 690VAC 2 Stud Rear Black For TIA/TIS HRC Bolt-In Fuse Link
IPD Fuse Holder BS88 A2/A3 63A 690VAC 2 Stud Rear Black For TIA/TIS HRC Bolt-In Fuse Link
In stock
SKU
EEFRS63P
Fuse Holder, 690 VAC, 63 Amp, 50 mm Cable, Fuse Holder Code: BS88 A2/A3, For Use With: TIA/TIS HRC Bolt-In Fuse Links, 2 Stud Rear Connector, Rated Breaking Capacity: 80 kA, M5 Screw Mounting, Black, 110mm Height x 35mm Width x 75mm Depth, 10/Pack
| Features |
|
|---|---|
| Brand | IPD |
| Range Name | Red Spot |
| Standard Pack Size | 10 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | RS63P |
| Colour | Black |
| Cable Size | 50 sq-mm |
| Connector Type | 2 Stud Rear |
| Current | 63 Amp |
| Dimensions | 110 mm Height x 35 mm Width x 75 mm Depth |
| For Use With | TIA/TIS HRC Bolt-In Fuse Links |
| Fuse Holder Code | BS88 Type A2/A3 |
| Mounting Method | M5 Screw |
| Pack Size | 10 Pack |
| Rated Breaking Capacity | 80kA |
| Product Type | Fuse Holders |
| Voltage | 690 Volt AC |
Description
Fuse Holder, 690 VAC, 63 Amp, 50 mm Cable, Fuse Holder Code: BS88 A2/A3, For Use With: TIA/TIS HRC Bolt-In Fuse Links, 2 Stud Rear Connector, Rated Breaking Capacity: 80 kA, M5 Screw Mounting, Black, 110mm Height x 35mm Width x 75mm Depth, 10/Pack
