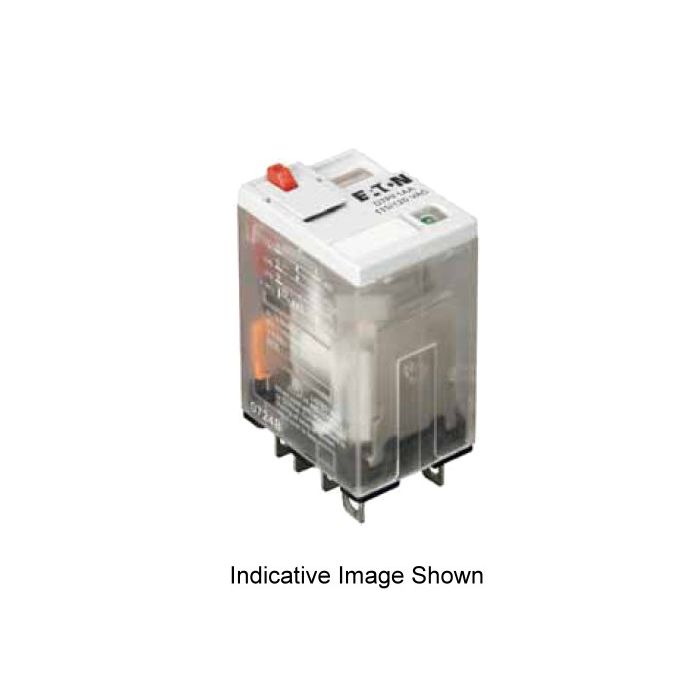

Eaton Miniature General Purpose Relay Panel/DIN Rail/Flange/Plug-In Mount 4P 4PDT 20A 110V 14 Pin Flat
Eaton Miniature General Purpose Relay Panel/DIN Rail/Flange/Plug-In Mount 4P 4PDT 20A 110V 14 Pin Flat
In stock
SKU
EATD7PF4AA
Miniature General Purpose Relay, 300 Volt, 110 Volt AC, 20 Amp, 1.5 Watt, 14 Pin Flat, 4 Pole, 4PDT, 2220 Ohm, Operating Time: 20 ms, 200000 Cycles, IP40, Panel/DIN Rail/Flange/Plug-In Mount, Silver Alloy, -40 to 55 deg C, 40.6 mm Width, 27.9 mm Depth
| Features |
|
|---|---|
| Brand | Eaton |
| Range Name | D7PF Series |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | D7PF4AA |
| Contact Configuration | 4PDT |
| Contact Material | Silver Alloy |
| Current | 20 Amp |
| Depth | 27.9 mm |
| IP Rating | IP40 |
| Mounting Method | Panel/DIN Rail/Flange/Plug-In |
| Number Of Poles | 4 Pole |
| Operating Cycles | 200000 Cycles |
| Operating Coil Voltage | 110 Volt AC |
| Operating Time | 20 ms |
| Pin Configuration | 14 Pin Flat |
| Power Rating | 1.5 Watt |
| Product Type | Power Relays |
| Temperature | -40 to 55 deg C |
| Voltage | 300 Volt |
| Resistance | 2220 Ohm |
| Width | 40.6 mm |
Description
Miniature General Purpose Relay, 300 Volt, 110 Volt AC, 20 Amp, 1.5 Watt, 14 Pin Flat, 4 Pole, 4PDT, 2220 Ohm, Operating Time: 20 ms, 200000 Cycles, IP40, Panel/DIN Rail/Flange/Plug-In Mount, Silver Alloy, -40 to 55 deg C, 40.6 mm Width, 27.9 mm Depth
