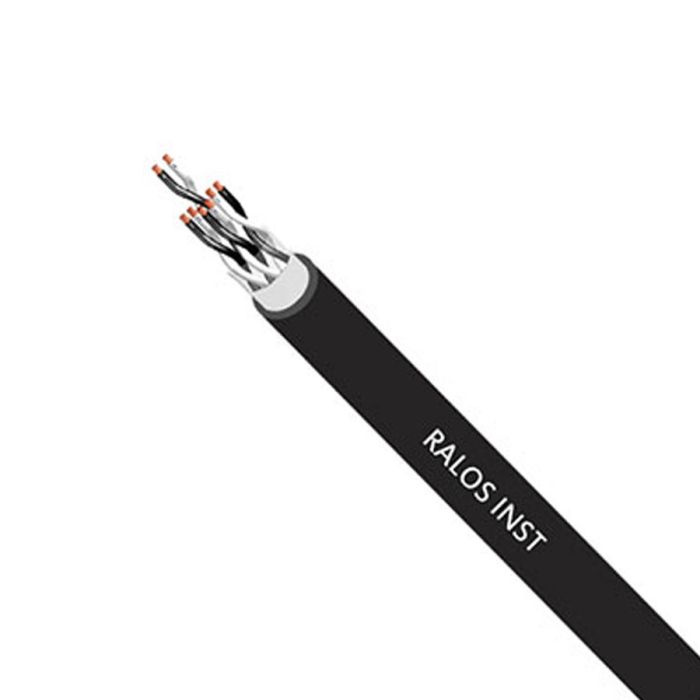

DKSH 1mm 1 Pair Instrumentation Cable Unarmoured High Temperature Overall Screened
DKSH 1mm 1 Pair Instrumentation Cable Unarmoured High Temperature Overall Screened
In stock
SKU
DKSINS1P1CSBK
Instrumentation Cable, Unarmoured, High Temperature, 1 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 1 Pair, 7/0.45 mm Strands, Overall Screened Screen, 7.3 mm Overall Diameter, 43.8 mm Bend Radius, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90HT PVC Insulation, V-90HT PVC Sheath, Black Sheath, -25 to 90 deg C, AS/NZS 1125
| Brand | DKSH |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | INS1P1CSBK |
| Conductor Size | 1 mm |
| Conductor Type | Class 2 Annealed Copper |
| Bend Radius | 43.8 mm |
| Core Colours | Black/White Numerals |
| Insulation Material | V-90HT PVC |
| Number of Pairs | 1 Pair |
| Overall Diameter | 7.3 mm |
| Product Type | Instrumentation Cable Unarmoured High Temperature |
| Screen Coverage | 100% |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Black |
| Screen Format | Overall Screened |
| Sheath Material | V-90HT PVC |
| Standards | AS/NZS 1125 |
| Stranding | 7/0.45 mm |
| Voltage | 110 Volt AC/150 Volt DC |
| Temperature | -25 to 90 deg C |
Description
Instrumentation Cable, Unarmoured, High Temperature, 1 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 1 Pair, 7/0.45 mm Strands, Overall Screened Screen, 7.3 mm Overall Diameter, 43.8 mm Bend Radius, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90HT PVC Insulation, V-90HT PVC Sheath, Black Sheath, -25 to 90 deg C, AS/NZS 1125
