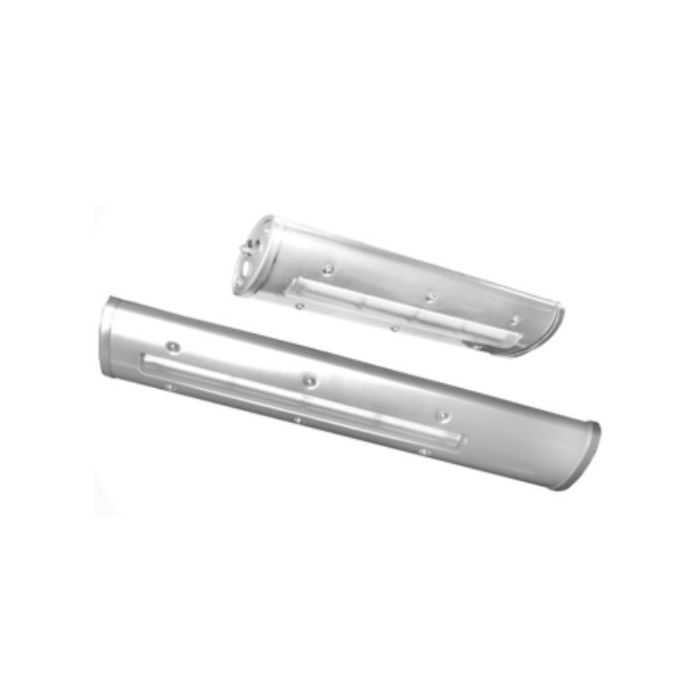

Dialight Hazardous Area LED Batten 34W Stainless Steel High Impact Polycarbonate 2ft IP66/67 White IECEx/ATEX
Dialight Hazardous Area LED Batten 34W Stainless Steel High Impact Polycarbonate 2ft IP66/67 White IECEx/ATEX
In stock
SKU
DIAELA-1N6M-SSCB4
Hazardous Area Linear LED Batten, 110-250 Volts AC, 34 Watt, Cable Entry: 2 x M25, Power Factor: >0.9, High Impact Polycarbonate 2FT Diffuser, Zones: IECEx/ATEX Zones 1, 21 and Zones 2, 22, Conductor Size: 0.5-4 mm, Number of Mounting Holes: 2 x M8, IP66/67 IK09, Wall/Pole/Ceiling Mounting, Stainless Steel 316 Grade Body, High Impact Polycarbonate Lens, Neutral White, 694 mm Length, 170 mm Width
| Features |
|
|---|---|
| Brand | Dialight |
| Range Name | SafeSite |
| Standard Pack Size | 1 |
| UNSPSC Class | 39111900 |
| UOM | EA |
| Vendor Product | ELA-1N6M-SSCB4 |
| Body Material | 316 Stainless Steel |
| Colour | Neutral White |
| Cable Entry | 2 x M25 |
| Conductor Size | 0.5-4 sq-mm |
| Diffuser Type | High Impact Polycarbonate 2FT |
| Length | 694 mm |
| IP Rating | IP66/67 IK09 |
| Lens Material | High Impact Polycarbonate |
| Mounting Method | Wall/Pole/Ceiling |
| Number of Mounting Holes | 2 x M8 |
| Product Type | Hazardous Area LED Linear |
| Power Factor | >0.9 |
| Voltage | 110-250 Volt |
| Wattage | 34 Watt |
| Width | 170 mm |
| Zones | IECEx/ATEX Zones 1/21 and Zones 2/22 |
Description
Hazardous Area Linear LED Batten, 110-250 Volts AC, 34 Watt, Cable Entry: 2 x M25, Power Factor: >0.9, High Impact Polycarbonate 2FT Diffuser, Zones: IECEx/ATEX Zones 1, 21 and Zones 2, 22, Conductor Size: 0.5-4 mm, Number of Mounting Holes: 2 x M8, IP66/67 IK09, Wall/Pole/Ceiling Mounting, Stainless Steel 316 Grade Body, High Impact Polycarbonate Lens, Neutral White, 694 mm Length, 170 mm Width
