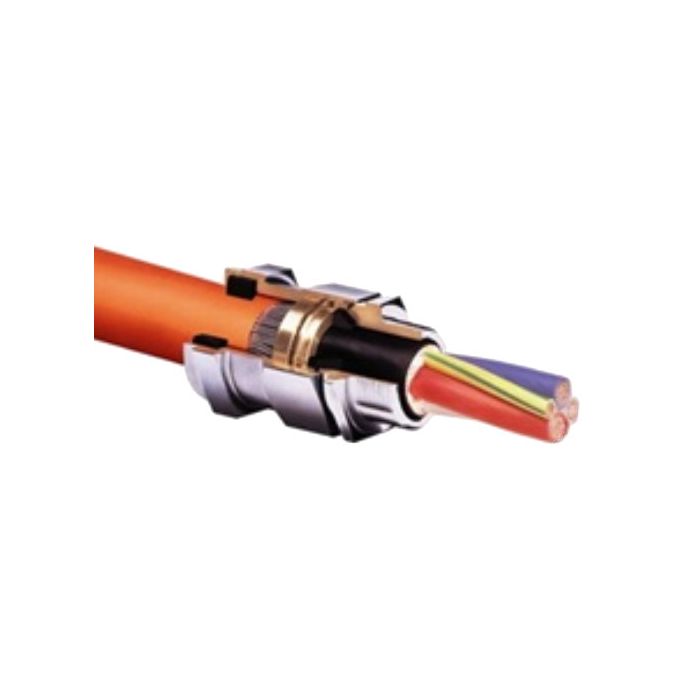

Crouse Hinds Hazardous Area Cable Gland Armoured 58-65.3mm M63 IP66/68
Crouse Hinds Hazardous Area Cable Gland Armoured 58-65.3mm M63 IP66/68
In stock
SKU
CRUTWAX6M65
Hazardous Area Cable Gland, Armoured, M63, 22 mm Thread Length, 58 mm Min. Sheath OD, 65.3 mm Max. Sheath OD, 55.9 mm Max. Bedding OD, 2 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, Exd, Exe, Ex tD, 80 mm Width Across Flats, 92.4 mm Width Across Corners, IP66/68, Brass Body, Nickel Plated Finish, 65.3 mm Overall Length
| Features |
|
|---|---|
| Brand | Crouse Hinds |
| Range Name | Terminator TWAX |
| Standard Pack Size | 5 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | TWAX6M65 |
| Finish | Nickel Plated |
| Body Material | Brass |
| Hazardous Area Rating | Exd Exe Ex tD |
| IP Rating | IP66/68 |
| Max. Bedding OD | 55.9 mm |
| Max. Armour Wire | 2.5 mm |
| Max. Sheath OD | 65.3 mm |
| Min. Armour Wire | 2 mm |
| Overall Length | 65.3 mm |
| Min. Sheath OD | 58 mm |
| Product Type | Cable Glands Hazardous Area |
| Thread Length | 22 mm |
| Thread Size | M63 |
| Width Across Corners | 92.4 mm |
| Width Across Flats | 80 mm |
Description
Hazardous Area Cable Gland, Armoured, M63, 22 mm Thread Length, 58 mm Min. Sheath OD, 65.3 mm Max. Sheath OD, 55.9 mm Max. Bedding OD, 2 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, Exd, Exe, Ex tD, 80 mm Width Across Flats, 92.4 mm Width Across Corners, IP66/68, Brass Body, Nickel Plated Finish, 65.3 mm Overall Length
