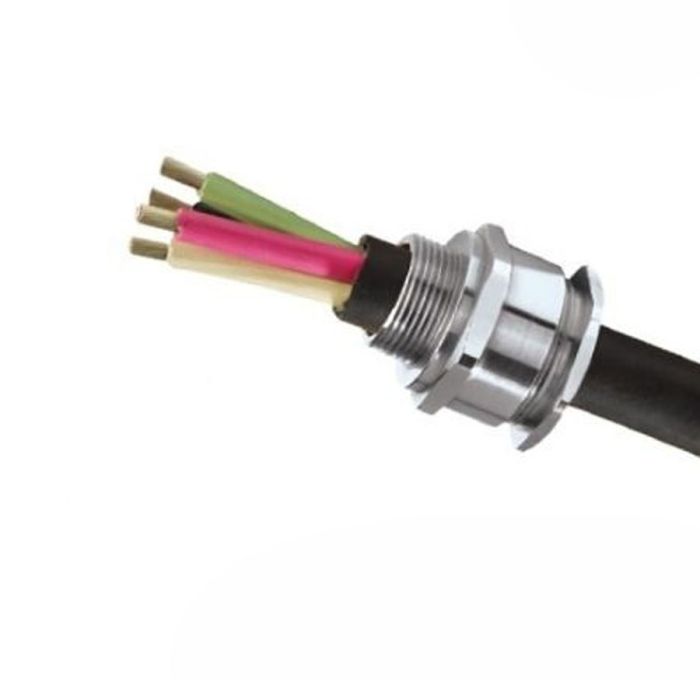

CMP Products Metal Cable Gland Unarmoured Industrial M32 17-26.3mm Nickel Plated Brass IP68
CMP Products Metal Cable Gland Unarmoured Industrial M32 17-26.3mm Nickel Plated Brass IP68
In stock
SKU
CMP32A21RA5/A20LOE
Cable Gland Metal Unarmoured Industrial, M32, 10 mm Thread Length, 17 mm Min. Sheath OD, 26.3 mm Max. Sheath OD, For Use With Unarmoured Cables, 41 mm Width Across Flats, IP68, Brass Body, CMP Thermosetting Rubber Seal, Nickel Plated, -60 to 130 deg C
| Features |
|
|---|---|
| Brand | CMP Products |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 32A21RA5/A20LOE |
| For Use With | Unarmoured Cables |
| Finish | Nickel Plated |
| IP Rating | IP68 |
| Body Material | Brass |
| Product Type | Cable Glands Unarmoured |
| Max. Sheath OD | 26.3 mm |
| Min. Sheath OD | 17 mm |
| Seal Material | CMP Thermosetting Rubber |
| Temperature | -60 to 130 deg C |
| Thread Length | 10 mm |
| Thread Size | M32 |
| Width Across Flats | 41 mm |
Description
Cable Gland Metal Unarmoured Industrial, M32, 10 mm Thread Length, 17 mm Min. Sheath OD, 26.3 mm Max. Sheath OD, For Use With Unarmoured Cables, 41 mm Width Across Flats, IP68, Brass Body, CMP Thermosetting Rubber Seal, Nickel Plated, -60 to 130 deg C
