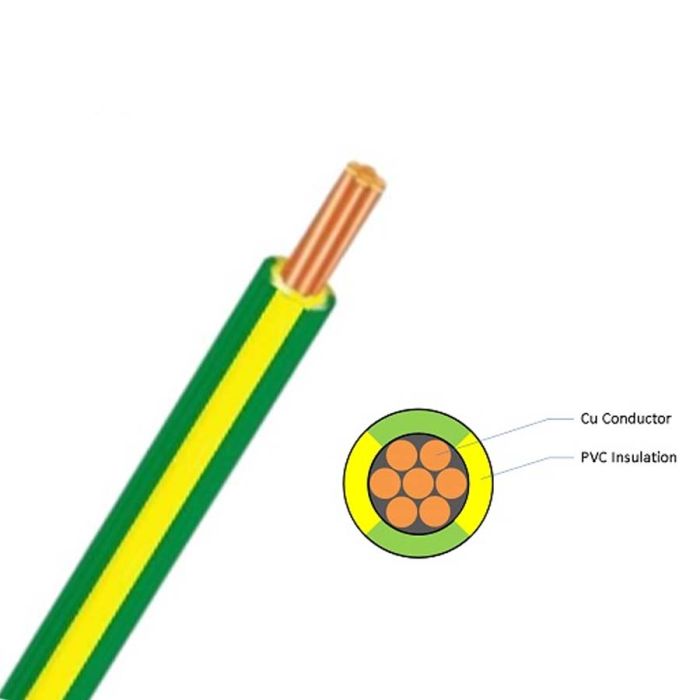

Building Wire 1 Core 16mm V-90 PVC Green/Yellow 0.6/1kV
In stock
SKU
CMIV7170CGN/YW
Building Wire, Single Insulated, 1 Core, 16 sq-mm, Annealed Copper, 0.6/1 kV, 7/1.7 mm Strands, 5.1 mm Nominal Diameter, 7.2 mm Overall Diameter, 1 mm Insulation Thickness, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, AS/NZS 5000.1
| Brand | CMI |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | V7170CGN/YW |
| Insulation Material | V-90 PVC |
| Insulation Colour | Green/Yellow |
| Voltage | 0.6-1 kV |
| Sheath Material | Unsheathed |
| Standards | AS/NZS 5000.1 |
| Insulation Thickness | 1 mm |
| Overall Diameter | 7.2 mm |
| Stranding | 7/1.7 mm |
| Conductor Size | 16 sq-mm |
| Conductor Type | Annealed Copper |
| Nominal Diameter | 5.1 mm |
Description
Building Wire, Single Insulated, 1 Core, 16 sq-mm, Annealed Copper, 0.6/1 kV, 7/1.7 mm Strands, 5.1 mm Nominal Diameter, 7.2 mm Overall Diameter, 1 mm Insulation Thickness, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, AS/NZS 5000.1
