CMI 10mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr
CMI 10mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr
In stock
SKU
CMIOX7135C4CE

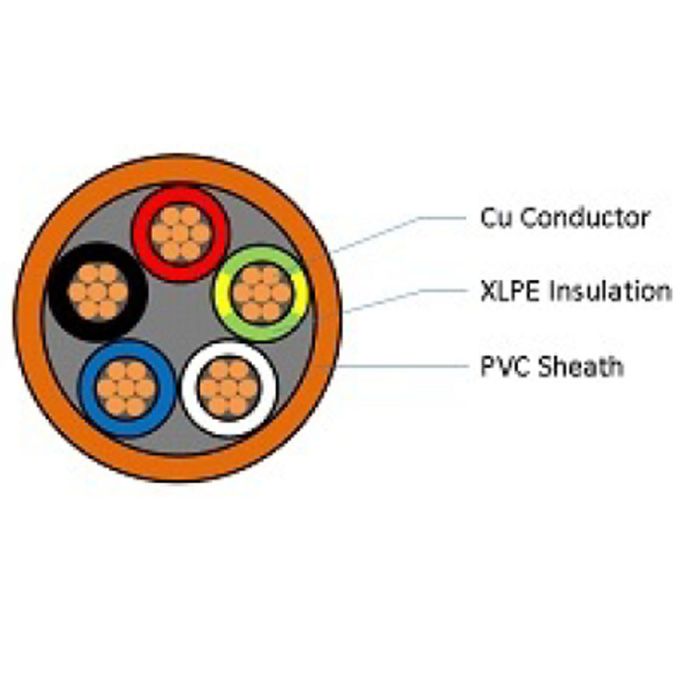

Circular Power Cable, Unarmoured, 4 Core & Earth, 10mm, Plain Annealed Copper, 0.6/1 kV, 7/1.35mm Strands, 4.05mm Nominal Diameter, 4mm Earth Conductor, 18.1mm Overall Diameter, 0.7mm Insulation Thickness, 1.8mm Sheath Thickness, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, AS/NZS 5000.1
| Brand | CMI |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | OX7135C4CE |
| Conductor Size | 10 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Earth Conductor Size | 4 mm |
| Insulation Material | XLPE |
| Insulation Thickness | 0.7 mm |
| Nominal Diameter | 4.05 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 18.1 mm |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 |
| Stranding | 7/1.35 mm |
| Voltage | 0.6-1 kV |
Description
Circular Power Cable, Unarmoured, 4 Core & Earth, 10mm, Plain Annealed Copper, 0.6/1 kV, 7/1.35mm Strands, 4.05mm Nominal Diameter, 4mm Earth Conductor, 18.1mm Overall Diameter, 0.7mm Insulation Thickness, 1.8mm Sheath Thickness, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, AS/NZS 5000.1
