CMI 150mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr
CMI 150mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr
In stock
SKU
CMIOX37225C4CE

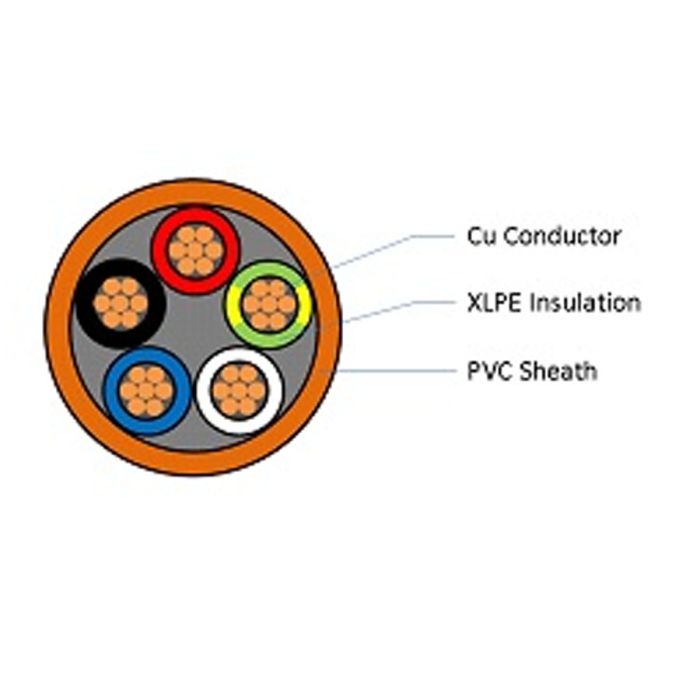

Circular Power Cable, Unarmoured, 4 Core & Earth, 150mm, Plain Annealed Copper, 0.6/1 kV, 37/2.25mm Strands, 15.75mm Nominal Diameter, 50mm Earth Conductor, 48.8mm Overall Diameter, 1.4mm Insulation Thickness, 2.5mm Sheath Thickness, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, AS/NZS 5000.1
| Brand | CMI |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | OX37225C4CE |
| Conductor Size | 150 mm |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Conductor Type | Annealed Copper |
| Earth Conductor Size | 50 mm |
| Insulation Material | XLPE |
| Insulation Thickness | 1.4 mm |
| Nominal Diameter | 15.75 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 48.8 mm |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Orange |
| Sheath Thickness | 2.5 mm |
| Standards | AS/NZS 5000.1 |
| Sheath Material | PVC |
| Stranding | 37/2.25 mm |
| Voltage | 0.6-1 kV |
Description
Circular Power Cable, Unarmoured, 4 Core & Earth, 150mm, Plain Annealed Copper, 0.6/1 kV, 37/2.25mm Strands, 15.75mm Nominal Diameter, 50mm Earth Conductor, 48.8mm Overall Diameter, 1.4mm Insulation Thickness, 2.5mm Sheath Thickness, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, AS/NZS 5000.1
