Clipsal C-Bus Relay Unit DIN Rail-Mount Voltage Free 4 Channel 240V 20A with Power Supply

Clipsal C-Bus Relay Unit DIN Rail-Mount Voltage Free 4 Channel 240V 20A with Power Supply

In stock
SKU
CLIL5504RVF20
Add to Compare

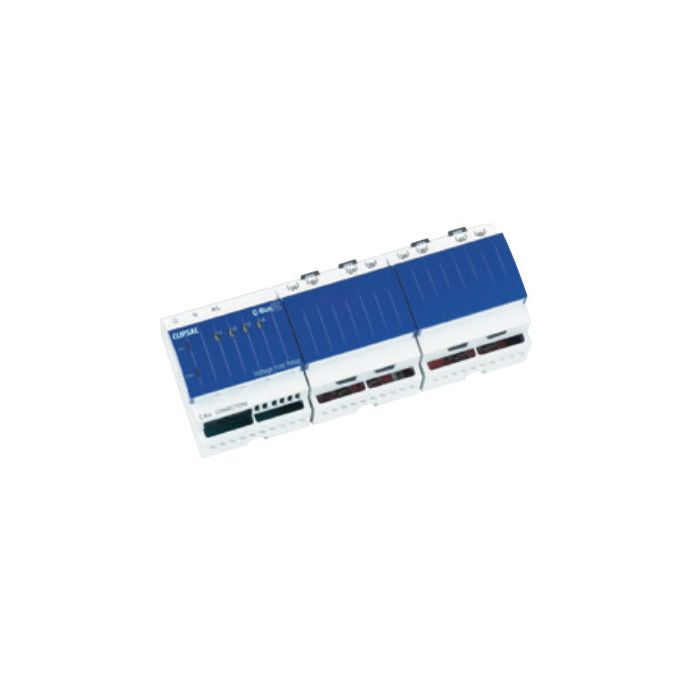

main product photo
DIN Rail Mounted Relay, 240 Volt AC, Supply: 15-36 Volt DC, 20 Amp, Number of Channels: 4, Number of Modules: 12, Terminal Type: Screw, Mounting Method: DIN Rail, 215mm Width, 85mm Height, 65mm Depth
More Information
More Information
Features
  • 4-channel 20A relay module, DIN rail-mounted
  • 12M DIN modules wide
  • 4-channels of voltage-free relay switching
  • Rated at 20Amp incandescent, 20Amp HID or 20Amp fluorescent load per channel
  • Relays feature magnetic latching
  • Built-in mechanical level for manual changeover of relay state
  • Incorporates a software selectable network burden and C-Bus system clock
  • A maximum of 10 units may be connected to any C-Bus network
  • Incorporates an inbuilt 200mA C-Bus power supply
  • C-Bus Learn Enabled
Brand Clipsal
Range Name C-Bus
Standard Pack Size 1
UNSPSC Class 39121800
UOM EA
Vendor Product L5504RVF20
Channels 4 Channel
Current 20 Amp
Depth 65mm
Height 85mm
Modules 12 Modules
Mounting Method DIN Rail
Product Type Relays
Terminal Type Screw
Width 215mm
Voltage 240 Volt

Description

DIN Rail Mounted Relay, 240 Volt AC, Supply: 15-36 Volt DC, 20 Amp, Number of Channels: 4, Number of Modules: 12, Terminal Type: Screw, Mounting Method: DIN Rail, 215mm Width, 85mm Height, 65mm Depth

Infosheets
