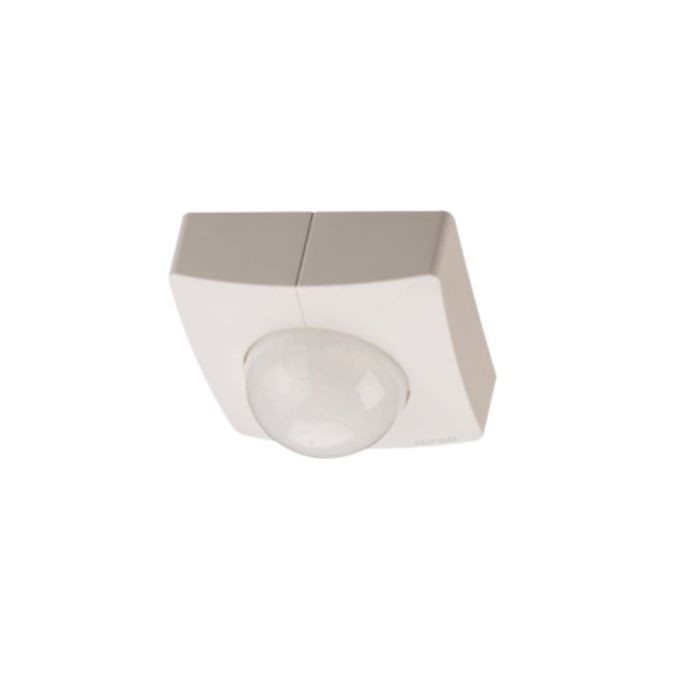

Clipsal Passive infrared Motion Detector 360deg 2.5M 3 Wire 10A 200-265V IP54 White Electric Surface Mount
Clipsal Passive infrared Motion Detector 360deg 2.5M 3 Wire 10A 200-265V IP54 White Electric Surface Mount
In stock
SKU
CLI753SSRWE
This Infrascan motion sensor is a 3-wire motion sensor with a maximum load handling of 10 Amp. The detection range of this motion sensor is 24m diameter with an angle of 360 deg (ceiling installation at 2.5m height). The delay time can be adjusted between 5 seconds and 15 minutes.
| Brand | Clipsal |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 753SSR-WE |
| Colour | White |
| Current | 10 Amp |
| Detection Angle | 360 deg |
| Detection Distance | 2.5 mtr |
| Height | 65 mm |
| Intensity | 2-2000 Lux |
| IP Rating | IP54 |
| Length | 95 mm |
| Mounting Method | Surface |
| Product Type | Motion Detectors |
| Temperature | -20 to 50 deg C |
| Voltage | 200-265 Volt |
| Width | 95 mm |
Description
This Infrascan motion sensor is a 3-wire motion sensor with a maximum load handling of 10 Amp. The detection range of this motion sensor is 24m diameter with an angle of 360 deg (ceiling installation at 2.5m height). The delay time can be adjusted between 5 seconds and 15 minutes.
