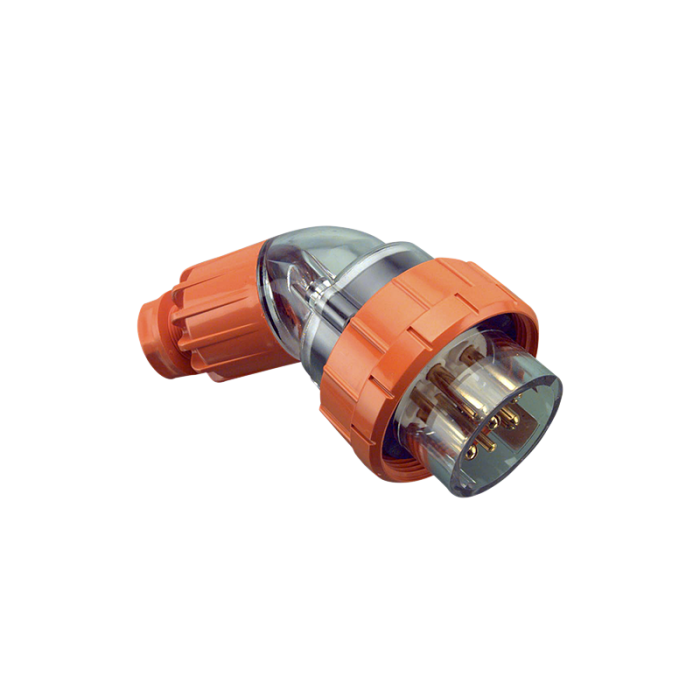

Clipsal 56 Series Plug Angled Body Weatherproof 3Ph 10A 500V 7 Pin Round Orange IP66
Clipsal 56 Series Plug Angled Body Weatherproof 3Ph 10A 500V 7 Pin Round Orange IP66
In stock
SKU
CLI56PA710
Plug Angled Body Weatherproof, 3 Phase, 10 Amp, 500 Volt AC, 7 Pin Round, Orange, IP66, Screw, Terminal Capacity: 1 to 6 mm, Cable Gland, M25 Cable Gland, PBT, -25 to 75 deg C, 78 mm Height, 126.5 mm Width, 158 mm Depth
| Brand | Clipsal |
|---|---|
| Range Name | 56 Series |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 56PA710-EO |
| Cable Entry | Cable Gland |
| Cable Gland Size | M25 |
| Colour | Orange |
| Connection Type | Screw |
| Current | 10 Amp |
| Depth | 158 mm |
| Height | 78 mm |
| IP Rating | IP66 |
| Pin Configuration | 7 Pin Round |
| Phase | 3 Phase |
| Product Type | Plugs Angled |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 1 to 6 sq-mm |
| Voltage | 500 Volt |
| Width | 126.5 mm |
Description
Plug Angled Body Weatherproof, 3 Phase, 10 Amp, 500 Volt AC, 7 Pin Round, Orange, IP66, Screw, Terminal Capacity: 1 to 6 mm, Cable Gland, M25 Cable Gland, PBT, -25 to 75 deg C, 78 mm Height, 126.5 mm Width, 158 mm Depth
