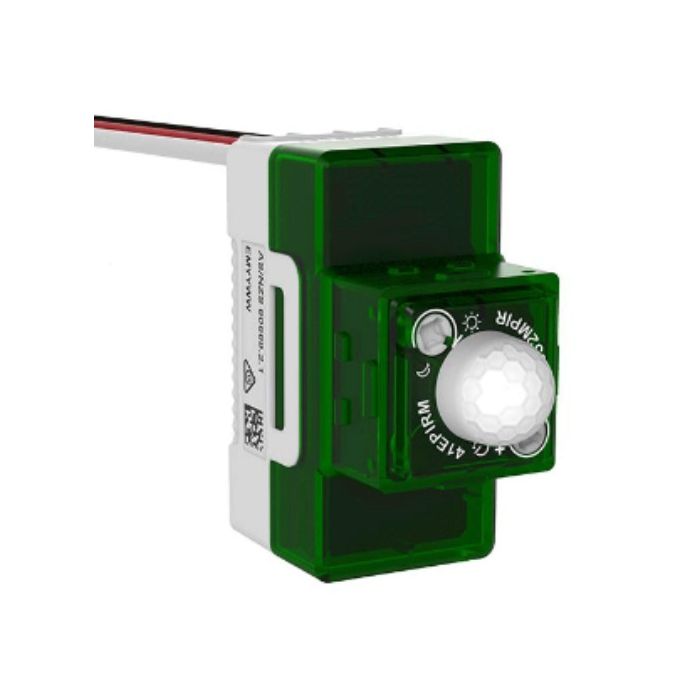

Clipsal Passive Infrared Motion Sensor Mechanism 3 Wire 100deg 5M 3A 220/240V 750W IP20 Translucent Wall Mount
Clipsal Passive Infrared Motion Sensor Mechanism 3 Wire 100deg 5M 3A 220/240V 750W IP20 Translucent Wall Mount
In stock
SKU
CLI41EPIRM-TN
Passive Infrared Motion Sensor Mechanism, 220-240 Volt, 0.125 Amp, 50 Hz, 10-2000 lux Intensity, IP20, Wall Mounting, 1.2 mtr Mounting Height, 100 deg Horizontal/82 deg Vertical Detection Angle, 5 mtr Detection Distance, Plastic, Translucent, -20 to 60 deg C, 49 mm Length, 48.5 mm Width, 23.5 mm Height, Load Output 750 Watt 3-Wire
| Brand | Clipsal |
|---|---|
| Range Name | Iconic |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 41EPIRM-TN |
| Colour | Translucent |
| Current | 0.125 Amp |
| Detection Angle | 100 deg Horizontal/82 deg Vertical |
| Detection Distance | 5 mtr |
| Frequency | 50 Hz |
| Height | 23.5 mm |
| Intensity | 10-2000 Lux |
| IP Rating | IP20 |
| Length | 49 mm |
| Material | Plastic |
| Mounting Method | Wall |
| Mounting Height | 1.2 mtr |
| Please Note | Load Output 750 Watt 3-Wire |
| Product Type | Sensors |
| Temperature | -20 to 60 deg C |
| Voltage | 220-240 Volt |
| Width | 48.5 mm |
Description
Passive Infrared Motion Sensor Mechanism, 220-240 Volt, 0.125 Amp, 50 Hz, 10-2000 lux Intensity, IP20, Wall Mounting, 1.2 mtr Mounting Height, 100 deg Horizontal/82 deg Vertical Detection Angle, 5 mtr Detection Distance, Plastic, Translucent, -20 to 60 deg C, 49 mm Length, 48.5 mm Width, 23.5 mm Height, Load Output 750 Watt 3-Wire
