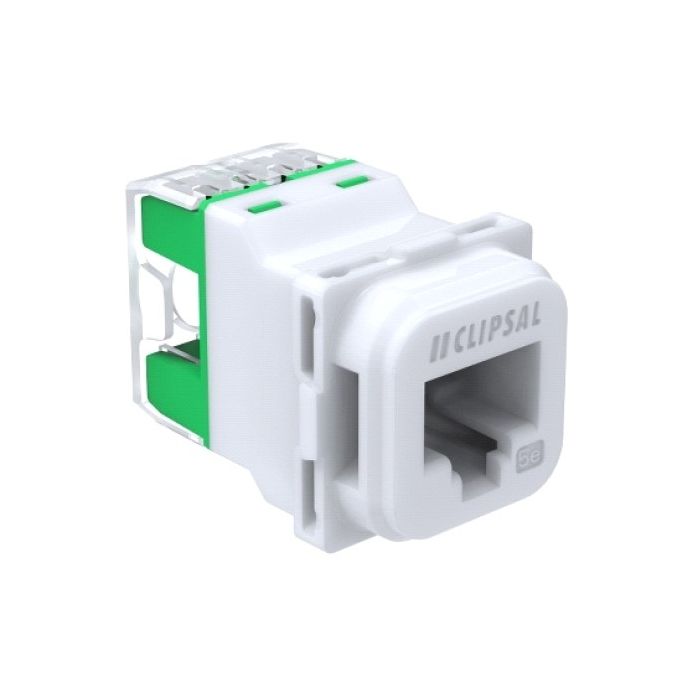

Clipsal Actassi S-110 Outlet Mechanism Modular Jack Cat5e UTP RJ45 30 Mech T568A/B Translucent
Clipsal Actassi S-110 Outlet Mechanism Modular Jack Cat5e UTP RJ45 30 Mech T568A/B Translucent
In stock
SKU
CLI40RJ45SMA5CTN
Outlet Mechanism Cat5e UTP, 1000 Volt AC/DC, 1.5 Amp, 24-23 AWG, RJ45 Connector, Cat5e UTP Cable, 8 Pins, >= 500 MOhm at 100 Volt DC Insulation Resistance, 20 mOhm Contact Resistance, 750 Cycles Durability, 1-100 MHz Bandwidth, Wiring Scheme: TIA-568A/B, S-110 40 Mech Outlet Mechanism, Flammability: UL94-V0, ABS + PC Housing, Copper Alloy Contact Base, Gold Plated Contact Plating, Translucent,-10 to 60 deg C, 36mm Length, 22mm Height, 16mm Width
| Brand | Clipsal |
|---|---|
| Range Name | RJ45 |
| Standard Pack Size | 1 |
| UNSPSC Class | 43223300 |
| UOM | EA |
| Vendor Product | 40RJ45SMA5C-TN |
| Cable Type | Cat5e UTP |
| Colour | Translucent |
| Conductor Size | 24-23 AWG |
| Connector | RJ45 |
| Contact Plating Material | Gold Plated |
| Contact Base Material | Copper Alloy |
| Current | 1.5 Amp |
| Contact Resistance | 20 mOhm |
| Durability | 750 Cycles |
| Flammability | UL94-V0 |
| Frequency Bandwidth | 1-100 MHz |
| Height | 22mm |
| Housing Material | ABS |
| Insulation Resistance | >= 500 MOhm at 100 Volt DC |
| Length | 36mm |
| Number of Pins | 8 Pin |
| Outlet Type | S-110 40 Mech |
| Temperature | -10 to 60 deg C |
| Voltage | 1000 Volt AC/DC |
| Width | 16mm |
| Wiring Scheme | TIA-568A/B |
Description
Outlet Mechanism Cat5e UTP, 1000 Volt AC/DC, 1.5 Amp, 24-23 AWG, RJ45 Connector, Cat5e UTP Cable, 8 Pins, >= 500 MOhm at 100 Volt DC Insulation Resistance, 20 mOhm Contact Resistance, 750 Cycles Durability, 1-100 MHz Bandwidth, Wiring Scheme: TIA-568A/B, S-110 40 Mech Outlet Mechanism, Flammability: UL94-V0, ABS + PC Housing, Copper Alloy Contact Base, Gold Plated Contact Plating, Translucent,-10 to 60 deg C, 36mm Length, 22mm Height, 16mm Width
