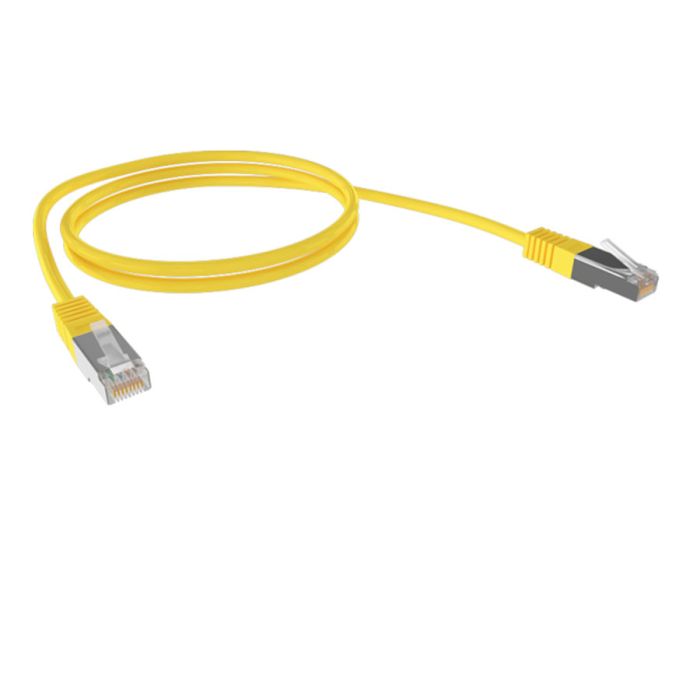

S/FTP Patch Cord Cat6A RJ45-RJ45 26AWG PVC Yellow 10m

Certech S/FTP Patch Cord Cat6A RJ45-RJ45 26AWG PVC Yellow 10m

In stock
SKU
CERNPLC6ASHYL10

S/FTP Patch Cord Cat6A, Connector A: RJ45 Modular Plug, Connector B: RJ45 Modular Plug, 26 AWG Conductor, Stranded Conductor, 5.8mm (+/-0.3mm) OD, 10 mtr Cord Length, IEC 60332-1-2, Wiring Scheme: T568A, PVC Sheath, Boot Material: PVC, Brass Shell, Yellow Sheath,-20 to 60 deg C
More Information
Features
  • Produced by an ISO9001 & ISO14001 certified manufacturer
  • 100% tested & channel certified by 3P, UL & ETL
  • AS/CA S008:2020 Approved
  • Covered by a lifetime warranty
  • CERTECH Cat6A S/FTP 10G patch leads conform to the ANSI/ TIA/EIA-568-B.2-10 specification
  • Patch leads are wired to the T568A pinout specification
Brand Certech
Standard Pack Size 1
UNSPSC Class 43223300
UOM EA
Vendor Product NPLC6ASHYL10
Cord Length 10 mtr
Sheath Colour Yellow
Product Type Cat6A Patch Cord
Connector A RJ45
Temperature -20 to 60 deg C
Conductor Size 26 AWG
Connector B RJ45
Sheath Material PVC
Outside Diameter 5.8mm (+/-0.3mm)
Plug Boot Material PVC/Brass Shell
Wiring Scheme T568A
Flammability IEC 60332-1-2

Description

S/FTP Patch Cord Cat6A, Connector A: RJ45 Modular Plug, Connector B: RJ45 Modular Plug, 26 AWG Conductor, Stranded Conductor, 5.8mm (+/-0.3mm) OD, 10 mtr Cord Length, IEC 60332-1-2, Wiring Scheme: T568A, PVC Sheath, Boot Material: PVC, Brass Shell, Yellow Sheath,-20 to 60 deg C
