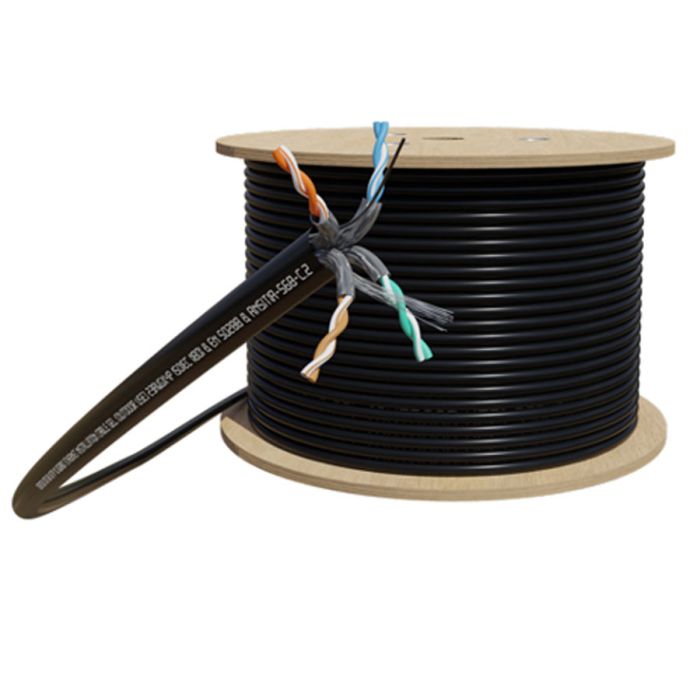

Certech U/FTP Network Cable Cat6A 4 Pair 23AWG Gel Filled Polyethylene/LDPE Black 305M
Certech U/FTP Network Cable Cat6A 4 Pair 23AWG Gel Filled Polyethylene/LDPE Black 305M
In stock
SKU
CERNCC6ASLDGEL
The CERTECH 305 mtr CAT 6A U/FTP external cable is a high-performance, shielded network cable designed for outdoor and underground use. The cable consists of 4 x copper conductor twisted pairs separated by a pair divider, a PE jacket and a dry core layer. Designed with a strength member for improved pulling tension, an overall foil shield and drain wire for earth continuity. With CAT 6A performance, this cable guarantees data transmission speeds of up to 10 gigabits per second (10 Gbps). Wrapped in a PE sheath and containing a dry core layer, this cable is protected from both UV rays and the ingress of water, making it an ideal choice for challenging outdoor installations.
| Features |
|
|---|---|
| Brand | Certech |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | EA |
| Vendor Product | NCC6ASLDGEL |
| Conductor Material | Bare copper |
| Cable Type | Cat 6A U/FTP |
| Conductor Diameter | 0.56 mm |
| Conductor Resistance | 9.38 Ohm/100m |
| Bend Radius | 8 x OD/4 x OD |
| Conductor Size | 23 AWG |
| Elongation | >=300- >=350 |
| Frequency Bandwidth | 500 MHz |
| Insulation Material | Foam Polyethylene |
| Length | 305 mtr |
| Outside Diameter | 7.4 mm |
| Pair Count | 4 |
| Screen Material | Aluminium |
| Sheath Colour | Black |
| Sheath Material | LDPE |
| Sheath Thickness | 0.55 mm +/-0.05 mm |
| Stranding | Solid |
| Temperature | 40 to 75 deg C |
Description
The CERTECH 305 mtr CAT 6A U/FTP external cable is a high-performance, shielded network cable designed for outdoor and underground use. The cable consists of 4 x copper conductor twisted pairs separated by a pair divider, a PE jacket and a dry core layer. Designed with a strength member for improved pulling tension, an overall foil shield and drain wire for earth continuity. With CAT 6A performance, this cable guarantees data transmission speeds of up to 10 gigabits per second (10 Gbps). Wrapped in a PE sheath and containing a dry core layer, this cable is protected from both UV rays and the ingress of water, making it an ideal choice for challenging outdoor installations.
