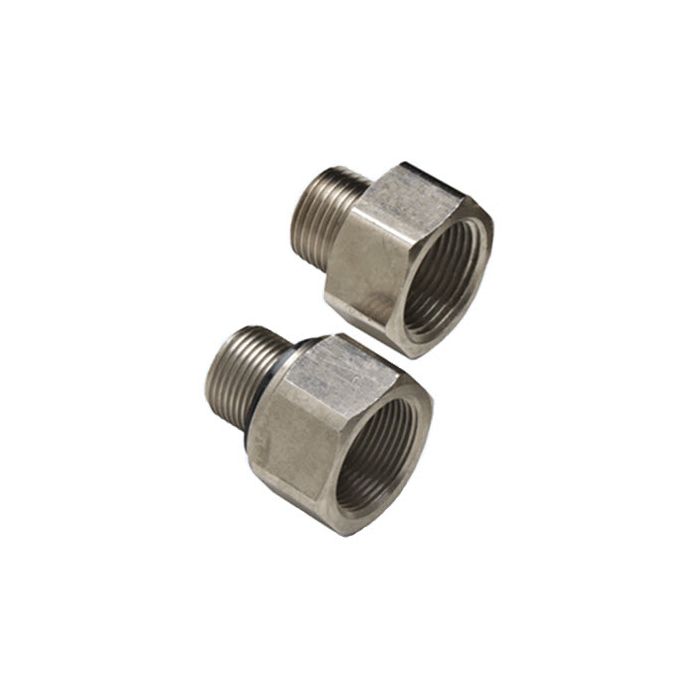

CCG Cable Gland Adaptor M20 Male to BSP 0.5 Female Nickel Plated Brass

CCG Cable Gland Adaptor M20 Male to BSP 0.5 Female Nickel Plated Brass

In stock
SKU
CCGAM020B012E
Cable Gland Adaptor, M20 Male to BSP 0.5 Female, 15 mm Thread Length, Exdb, Exeb, Extb, ExR, 22 mm Hex Length, 27 mm Width Across Flats, 30.4 mm Width Across Corners, IP65/66/68, HDPE Gasket, Brass Body, Nickel Plated Finish, -20 to 95 deg C
More Information
Features
  • Precision manufactured from high quality Brass
  • Converts mismatching threads to the required thread
  • For general industrial and hazardous area installations
  • The installer should check that the materials are suitable for the installation environment
Brand CCG
Range Name EX Adaptors
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product AM020B012E
Finish Nickel Plated
From M20 Male
Hazardous Area Rating Exdb Exeb Extb ExR
Hex Length 22 mm
IP Rating IP65/66/68
Temperature -20 to 95 deg C
Product Type Grand Adaptors & Converters
Thread Length 15 mm
To BSP 0.5 Female
Width Across Corners 30.4 mm
Width Across Flats 27 mm

Description

Cable Gland Adaptor, M20 Male to BSP 0.5 Female, 15 mm Thread Length, Exdb, Exeb, Extb, ExR, 22 mm Hex Length, 27 mm Width Across Flats, 30.4 mm Width Across Corners, IP65/66/68, HDPE Gasket, Brass Body, Nickel Plated Finish, -20 to 95 deg C
