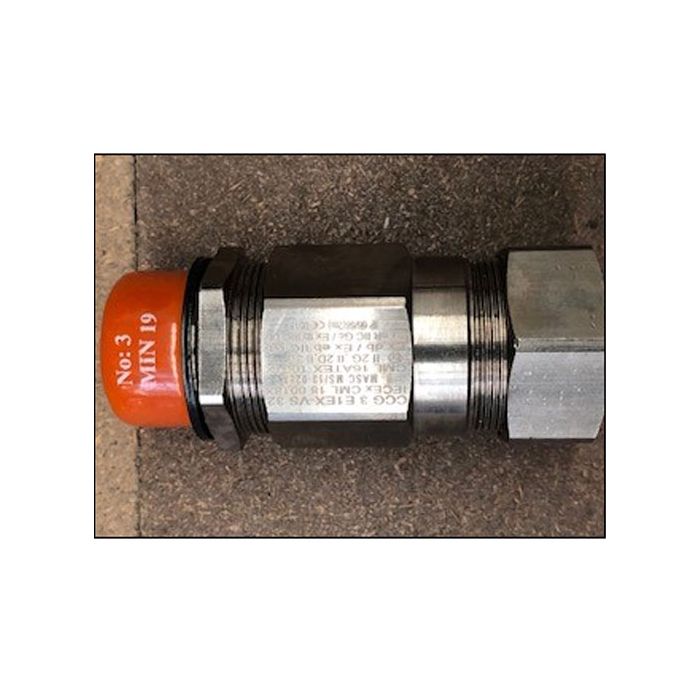

CCG Metal Cable Gland Armoured General Purpose 26.5-33.5mm M32 IP65/66/68
CCG Metal Cable Gland Armoured General Purpose 26.5-33.5mm M32 IP65/66/68
In stock
SKU
CCG057403
Metal Cable Gland, Armoured, General Purpose, M32, 15 mm Thread Length, 1.5 mm Pitch, 26.5 mm Min. Sheath OD, 33.5 mm Max. Sheath OD, 0.2 mm Min. Armour Wire, 2 mm Max. Armour Wire, For Variable Speed Drive or Lead Sheathed Cable, 42 mm Width Across Flats, 47 mm Width Across Corners, 42 Nm, IP65/66/68, Thermoset Elastomer Seal, Brass Body, Nickel Plated Finish, -65 to 95 deg C, 91 mm Overall Length
| Features |
|
|---|---|
| Brand | CCG |
| Standard Pack Size | 10 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 057403 |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Variable Speed Drive or Lead Sheathed Cable |
| IP Rating | IP65/66/68 |
| Max. Armour Wire | 2 mm |
| Min. Armour Wire | 0.2 mm |
| Max. Sheath OD | 33.5 mm |
| Min. Sheath OD | 26.5 mm |
| Overall Length | 91 mm |
| Product Type | Cable Glands Metal |
| Thread Length | 15 mm |
| Temperature | -65 to 95 deg C |
| Seal Material | Thermoset Elastomer |
| Thread Pitch | 1.5 mm |
| Thread Size | M32 |
| Torque Rating | 42 Nm |
| Width Across Corners | 47 mm |
| Width Across Flats | 42 mm |
Description
Metal Cable Gland, Armoured, General Purpose, M32, 15 mm Thread Length, 1.5 mm Pitch, 26.5 mm Min. Sheath OD, 33.5 mm Max. Sheath OD, 0.2 mm Min. Armour Wire, 2 mm Max. Armour Wire, For Variable Speed Drive or Lead Sheathed Cable, 42 mm Width Across Flats, 47 mm Width Across Corners, 42 Nm, IP65/66/68, Thermoset Elastomer Seal, Brass Body, Nickel Plated Finish, -65 to 95 deg C, 91 mm Overall Length
