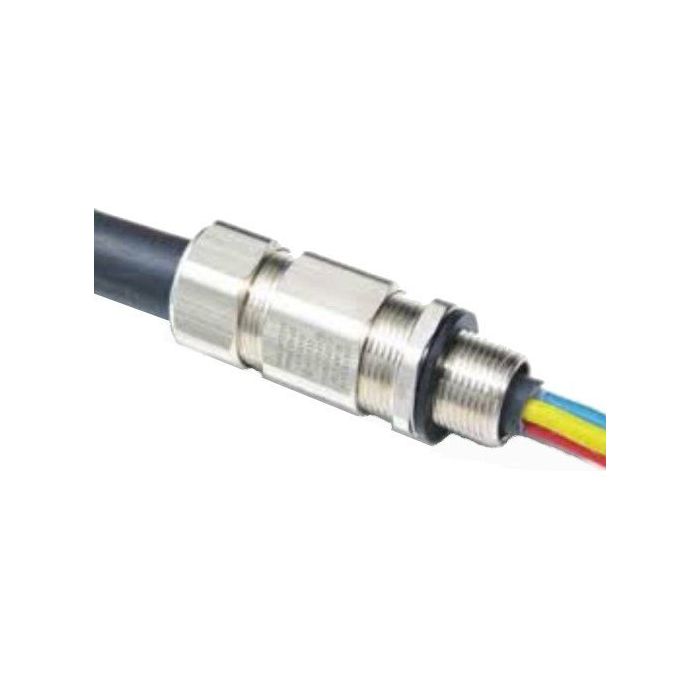

CCG Hazardous Area Cable Gland Armoured Barrier 11.5-16mm M20 IP66
CCG Hazardous Area Cable Gland Armoured Barrier 11.5-16mm M20 IP66
In stock
SKU
CCG0560-0
Hazardous Area Cable Gland, Armoured, Barrier, M20, 15 mm Thread Length, 1.5 mm Pitch, 11.5 mm Min. Sheath OD, 16 mm Max. Sheath OD, 12 mm Max. Bedding OD, 0.2 mm Min. Armour Wire, 1.25 mm Max. Armour Wire, Exdb IIC, Exeb IIC, Ex tb IIIC, Ex nR IIC, 24 mm Width Across Flats, 27 mm Width Across Corners, For Unfilled SWA and Aluminium Armoured Cable, 6 Core, 21 N/m, IP66, Thermoplastic Elastomer Seal, Brass Body, Nickel Plated Finish, -20 to 95 deg C, 75 mm Overall Length
| Features |
|
|---|---|
| Brand | CCG |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 0560-0 |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Unfilled SWA & Aluminium Armoured Cable |
| Hazardous Area Rating | Exdb IIC Exeb IIC Ex tb IIIC Ex nR IIC |
| IP Rating | IP66 |
| Max. Armour Wire | 1.25mm |
| Max. Bedding OD | 12mm |
| Max. Sheath OD | 16mm |
| Min. Armour Wire | 0.2mm |
| Min. Sheath OD | 11.5mm |
| Number of Cores | 6 |
| Overall Length | 75 mm |
| Product Type | Cable Glands Hazardous Area |
| Seal Material | Thermoplastic Elastomer |
| Temperature | -20 to 95 deg C |
| Thread Length | 15mm |
| Thread Pitch | 1.5mm |
| Thread Size | M20 |
| Torque Rating | 21 N/m |
| Width Across Corners | 27 mm |
| Width Across Flats | 24 mm |
Description
Hazardous Area Cable Gland, Armoured, Barrier, M20, 15 mm Thread Length, 1.5 mm Pitch, 11.5 mm Min. Sheath OD, 16 mm Max. Sheath OD, 12 mm Max. Bedding OD, 0.2 mm Min. Armour Wire, 1.25 mm Max. Armour Wire, Exdb IIC, Exeb IIC, Ex tb IIIC, Ex nR IIC, 24 mm Width Across Flats, 27 mm Width Across Corners, For Unfilled SWA and Aluminium Armoured Cable, 6 Core, 21 N/m, IP66, Thermoplastic Elastomer Seal, Brass Body, Nickel Plated Finish, -20 to 95 deg C, 75 mm Overall Length
