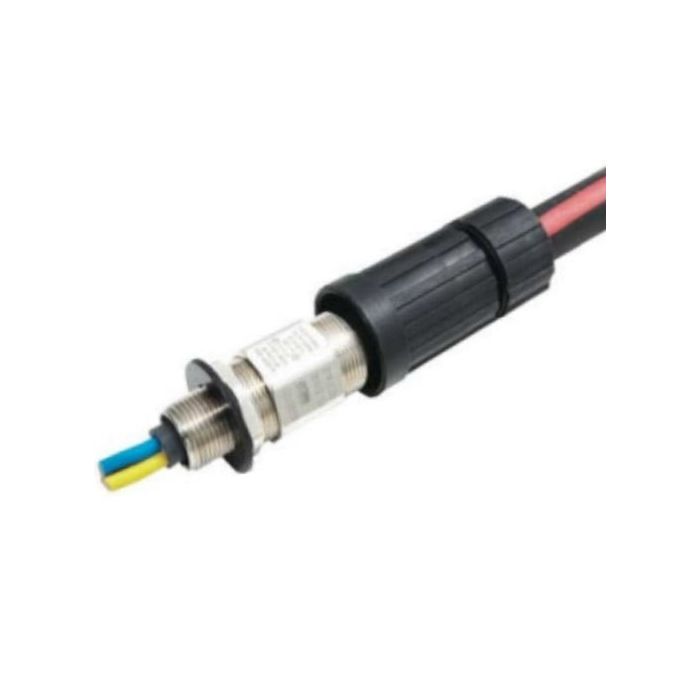

CCG Hazardous Area Cable Gland Armoured 8-13.5mm M20 IP66/68
CCG Hazardous Area Cable Gland Armoured 8-13.5mm M20 IP66/68
In stock
SKU
CCG054700
Hazardous Area Cable Gland Armoured, M20, 15 mm Thread Length, 1.5 mm, 8 mm Min. Sheath OD, 13.5 mm Max. Sheath OD, 8.5 mm Max. Bedding OD, 0.2 mm Min. Armour Wire, 0.9 mm Max. Armour Wire, Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC, 24 mm Width Across Flats, 27 mm Width Across Corners, For Use With Steel and Aluminium Armoured Cables, 21 Nm Torque Rating, IP66/68, Polyester Encapsulated Brass Body, Thermoset Elastomer Seal, -20 to 95 deg C, 61 mm Overall Length
| Features |
|
|---|---|
| Brand | CCG |
| Range Name | EX Corrosion |
| Standard Pack Size | 10 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 054700 |
| IP Rating | IP66/68 |
| For Use With | Steel and Aluminium Armoured Cables |
| Body Material | Polyester Encapsulated Brass |
| Hazardous Area Rating | Ex db IIC Ex eb IIC Ex tb IIIC Ex nR IIC |
| Max. Sheath OD | 13.5 mm |
| Max. Armour Wire | 0.9 mm |
| Max. Bedding OD | 8.5 mm |
| Product Type | Cable Glands Hazardous Area |
| Overall Length | 61 mm |
| Min. Armour Wire | 0.2 mm |
| Min. Sheath OD | 8 mm |
| Thread Length | 15 mm |
| Temperature | -20 to 95 deg C |
| Seal Material | Thermoset Elastomer |
| Thread Size | M20 |
| Torque Rating | 21 Nm |
| Width Across Flats | 24 mm |
| Thread Pitch | 1.5 mm |
| Width Across Corners | 27 mm |
Description
Hazardous Area Cable Gland Armoured, M20, 15 mm Thread Length, 1.5 mm, 8 mm Min. Sheath OD, 13.5 mm Max. Sheath OD, 8.5 mm Max. Bedding OD, 0.2 mm Min. Armour Wire, 0.9 mm Max. Armour Wire, Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC, 24 mm Width Across Flats, 27 mm Width Across Corners, For Use With Steel and Aluminium Armoured Cables, 21 Nm Torque Rating, IP66/68, Polyester Encapsulated Brass Body, Thermoset Elastomer Seal, -20 to 95 deg C, 61 mm Overall Length
