CCG Metal Cable Gland Unarmoured General Purpose M40 22-31.5mm Nickel Plated Brass IP66/68

Name: Metal Cable Gland U/A GP M40 22-31.5mm IP66/68 NPB
SKU: CCG053544
Availability: InStock

In stock

SKU

CCG053544

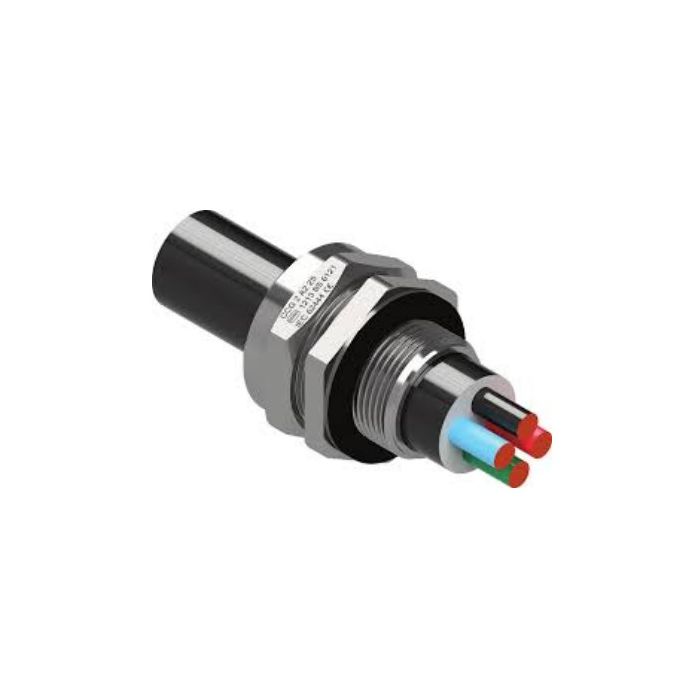

Compression Gland for Single and Multi-Core Unarmoured Cable.

More Information
Features	For indoor and outdoor use Seals on the cable sheath, to IP68 if fitted with a gasket Specially formulated elastomeric seals Wide sealing range Precision manufactured from high quality brass and nickel plated By removing the outer nut seal and bush the inners of sizes 1 to 3 can be used as metric reducers
Brand	CCG
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	053544
Body Material	Brass
Finish	Nickel Plated
For Use With	Unarmoured Cables
IP Rating	IP66/68
Max. Sheath OD	31.5 mm
Overall Length	45 mm
Min. Sheath OD	22 mm
Seal Material	Thermoset Elastomer
Temperature	-65 to 120 deg C
Thread Length	15 mm
Thread Pitch	1.5 mm
Thread Size	M40
Width Across Corners	59 mm
Width Across Flats	52 mm
Torque Rating	65 Nm

Description

Compression Gland for Single and Multi-Core Unarmoured Cable.
