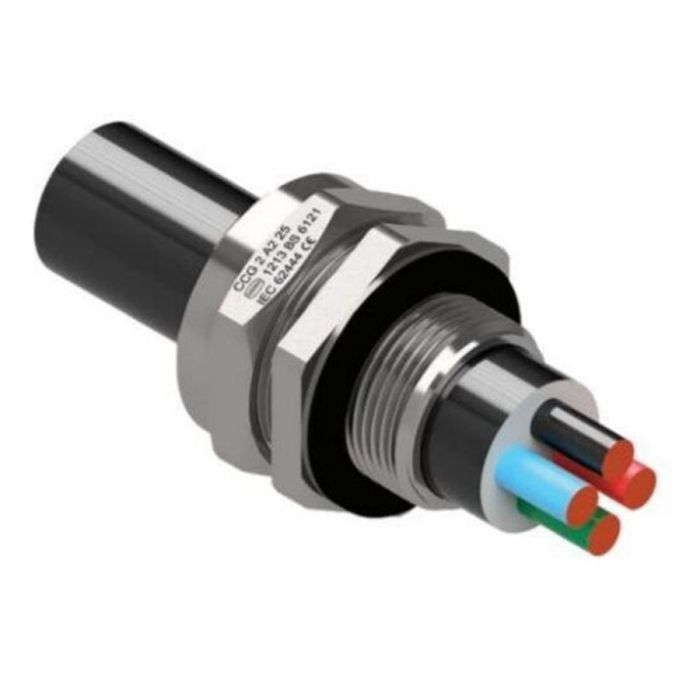

CCG Single Compression Cable Gland M63 x 1.5 44.5-56.5mm IP66/68

CCG Single Compression Cable Gland M63 x 1.5 44.5-56.5mm IP66/68

In stock
SKU
CCG053506-EMC
Single Compression Cable Gland EMC, M63, 15 mm Thread Length, 1.5 mm, 44.5 mm Min. Sheath OD, 56.5 mm Max. Sheath OD, 80 mm Width Across Flats, 90 mm Width Across Corners, 97.5 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer/Silicone Seal, Nickel Plated, -20 to 125 deg C, 63 mm Length
More Information
Features
  • For indoor and outdoor use
  • Seals the cable sheath to IP66/68
  • Specially formulated elastomeric seals
  • Provides 360 deg earthling to braid
  • Precision manufactured from high quality brass
  • Complete with heavy duty locknut and thread sealing gasket
  • For braided cable
Brand CCG
Standard Pack Size 2
UNSPSC Class 39121400
UOM EA
Vendor Product 053506-EMC
Body Material Brass
Finish Nickel Plated
IP Rating IP66/68
Length 63 mm
Max. Sheath OD 56.5 mm
Min. Sheath OD 44.5 mm
Seal Material Thermoplastic Elastomer/Silicone
Thread Pitch 1.5 mm
Thread Length 15 mm
Temperature -20 to 125 deg C
Thread Size M63
Torque Rating 97.5 Nm
Width Across Flats 80 mm
Width Across Corners 90 mm

Description

Single Compression Cable Gland EMC, M63, 15 mm Thread Length, 1.5 mm, 44.5 mm Min. Sheath OD, 56.5 mm Max. Sheath OD, 80 mm Width Across Flats, 90 mm Width Across Corners, 97.5 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer/Silicone Seal, Nickel Plated, -20 to 125 deg C, 63 mm Length
