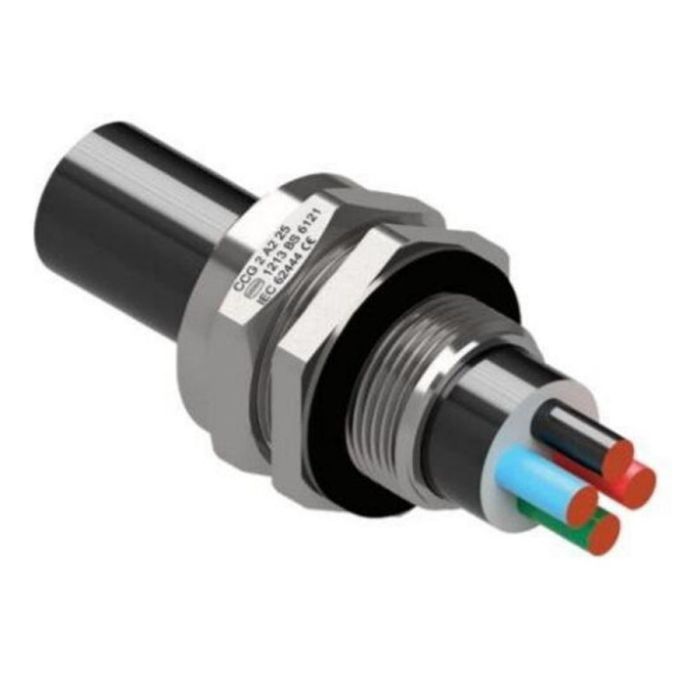

CCG Single Compression Cable Gland M50 x 1.5 34-44.5mm IP66/68
CCG Single Compression Cable Gland M50 x 1.5 34-44.5mm IP66/68
In stock
SKU
CCG053505-EMC
Single Compression Cable Gland EMC, M50, 15 mm Thread Length, 1.5 mm, 34 mm Min. Sheath OD, 44.5 mm Max. Sheath OD, 65 mm Width Across Flats, 73 mm Width Across Corners, 82.5 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer/Silicone Seal, Nickel Plated, -20 to 125 deg C, 57 mm Length
| Features |
|
|---|---|
| Brand | CCG |
| Standard Pack Size | 2 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 053505-EMC |
| Body Material | Brass |
| Finish | Nickel Plated |
| IP Rating | IP66/68 |
| Length | 57 mm |
| Max. Sheath OD | 44.5 mm |
| Min. Sheath OD | 34 mm |
| Product Type | Compression Glands |
| Seal Material | Thermoplastic Elastomer / Silicone |
| Thread Length | 15 mm |
| Temperature | -20 to 125 deg C |
| Thread Pitch | 1.5 mm |
| Thread Size | M50 |
| Torque Rating | 82.5 Nm |
| Width Across Flats | 65 mm |
| Width Across Corners | 73 mm |
Description
Single Compression Cable Gland EMC, M50, 15 mm Thread Length, 1.5 mm, 34 mm Min. Sheath OD, 44.5 mm Max. Sheath OD, 65 mm Width Across Flats, 73 mm Width Across Corners, 82.5 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer/Silicone Seal, Nickel Plated, -20 to 125 deg C, 57 mm Length
