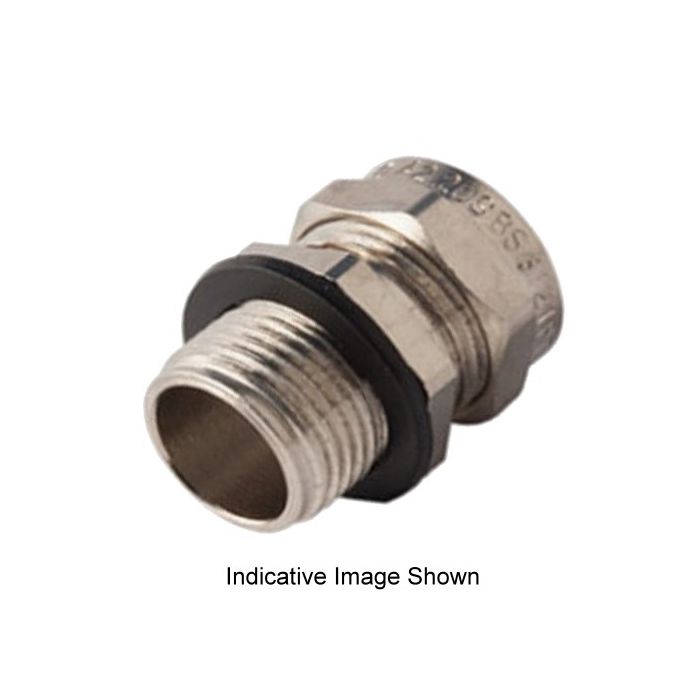

CCG Metal Cable Gland Unarmoured General Purpose M50 34-44.5mm Nickel Plated Brass with Locknut IP66/68

Name: Metal Cable Gland U/A GP M50 34-44.5mm w/L-Nut IP66/68 NPB
SKU: CCG053505
Availability: InStock

In stock

SKU

CCG053505

Compression Gland for Single and Multi-Core Unarmoured Cable.

More Information
Features	For indoor and outdoor use Seals on the cable sheath, to IP68 if fitted with a gasket Specially formulated elastomeric seals Wide sealing range Precision manufactured from high quality brass and nickel plated By removing the outer nut seal and bush the inners of sizes 1 to 3 can be used as metric reducers
Brand	CCG
Range Name	Type A2
Standard Pack Size	2
UNSPSC Class	39121400
UOM	EA
Vendor Product	053505
Body Material	Brass
Finish	Nickel Plated
For Use With	Unarmoured Cables
IP Rating	IP66/68
Max. Sheath OD	44.5 mm
Overall Length	57 mm
Min. Sheath OD	34 mm
Seal Material	Thermoset Elastomer
Temperature	-65 to 120 deg C
Thread Length	15 mm
Thread Pitch	1.5 mm
Thread Size	M50
Width Across Corners	75 mm
Width Across Flats	65 mm
Torque Rating	82.5 Nm

Description

Compression Gland for Single and Multi-Core Unarmoured Cable.
