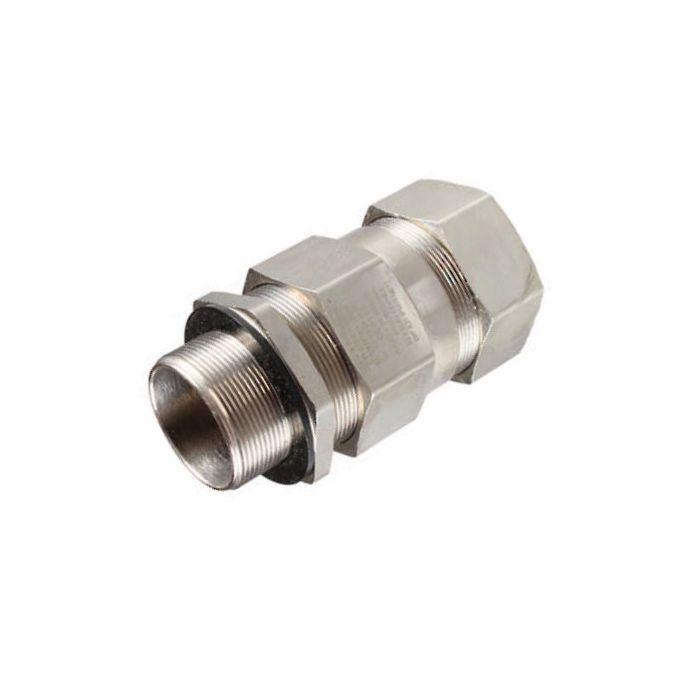

CCG Hazardous Area Cable Gland Armoured 30-39.5mm M40 IP66/68
CCG Hazardous Area Cable Gland Armoured 30-39.5mm M40 IP66/68
In stock
SKU
CCG052344
Hazardous Area Cable Gland Armoured, M40, 15 mm Thread Length, 1.5 mm, 30 mm Min. Sheath OD, 39.5 mm Max. Sheath OD, 31.5 mm Max. Bedding OD, 0.3 mm Min. Armour Wire, 2 mm Max. Armour Wire, Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC, 52 mm Width Across Flats, 58.5 mm Width Across Corners, For Use With Steel and Aluminium Armoured Cables, 52 Nm Torque Rating, IP66/68, Brass Body, Thermoset Elastomer Seal, Nickel Plated, -20 to 95 deg C, 108 mm Overall Length
| Features |
|
|---|---|
| Brand | CCG |
| Standard Pack Size | 10 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 052344 |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Steel and Aluminium Armoured Cables |
| Hazardous Area Rating | Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC |
| IP Rating | IP66/68 |
| Max. Armour Wire | 2 mm |
| Max. Bedding OD | 31.5 mm |
| Max. Sheath OD | 39.5 mm |
| Min. Armour Wire | 0.3 mm |
| Min. Sheath OD | 30 mm |
| Overall Length | 108 mm |
| Product Type | Cable Glands Hazardous Area |
| Seal Material | Thermoset Elastomer |
| Temperature | -20 to 95 deg C |
| Thread Length | 15 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M40 |
| Torque Rating | 52 Nm |
| Width Across Corners | 58.5 mm |
| Width Across Flats | 52 mm |
Description
Hazardous Area Cable Gland Armoured, M40, 15 mm Thread Length, 1.5 mm, 30 mm Min. Sheath OD, 39.5 mm Max. Sheath OD, 31.5 mm Max. Bedding OD, 0.3 mm Min. Armour Wire, 2 mm Max. Armour Wire, Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC, 52 mm Width Across Flats, 58.5 mm Width Across Corners, For Use With Steel and Aluminium Armoured Cables, 52 Nm Torque Rating, IP66/68, Brass Body, Thermoset Elastomer Seal, Nickel Plated, -20 to 95 deg C, 108 mm Overall Length
