6mm Orange Circular Cable Unarmoured PVC/PVC 500mtr
6mm Orange Circular Cable Unarmoured PVC/PVC 500mtr
In stock
SKU
CBL6/2CEOC1KV-5

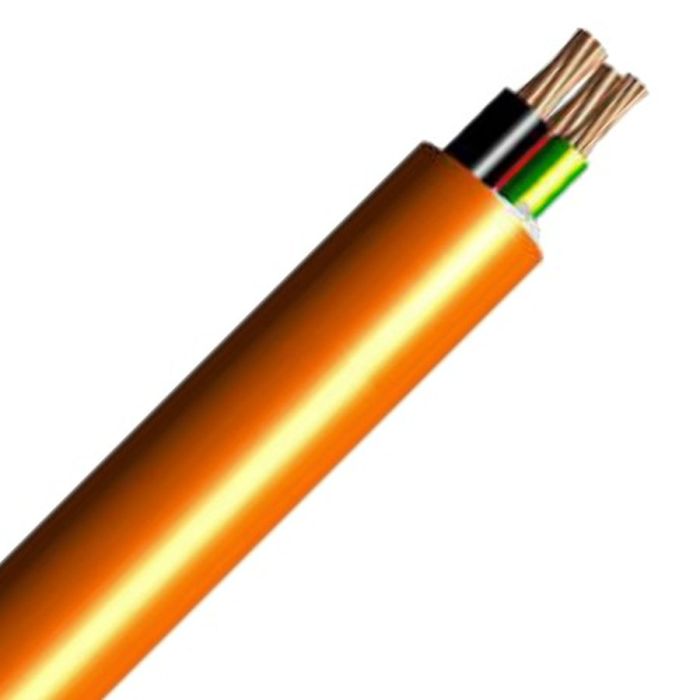

Circular Cable Unarmoured, 6mm, Annealed Copper, 0.6-1 kV, 2 Core + Earth, 7/1.04mm Strands, 3.1mm Nominal Diameter, 14.3mm Overall Diameter, 2.5mm Earth Conductor, 100 mtr Length, 60mm Bend Radius, 1mm Insulation Thickness, DC: 3.08 Ohm/km Conductor Resistance, Red/Black/Green/Yellow Core, PVC Insulation, PVC Sheath, Orange Sheath, 75 deg C, AS/NZS 5000.1
| Brand | Generic |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199573 |
| Bend Radius | 60 mm |
| Conductor Resistance | DC: 3.08 Ohm/km |
| Conductor Size | 6 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Red/Green/Yellow |
| Insulation Thickness | 1 mm |
| Insulation Material | PVC |
| Earth Conductor Size | 2.5 mm |
| Length | 100 mtr |
| Nominal Diameter | 3.1 mm |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 14.3 mm |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Stranding | 7/1.04 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 75 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Cable Unarmoured, 6mm, Annealed Copper, 0.6-1 kV, 2 Core + Earth, 7/1.04mm Strands, 3.1mm Nominal Diameter, 14.3mm Overall Diameter, 2.5mm Earth Conductor, 100 mtr Length, 60mm Bend Radius, 1mm Insulation Thickness, DC: 3.08 Ohm/km Conductor Resistance, Red/Black/Green/Yellow Core, PVC Insulation, PVC Sheath, Orange Sheath, 75 deg C, AS/NZS 5000.1
