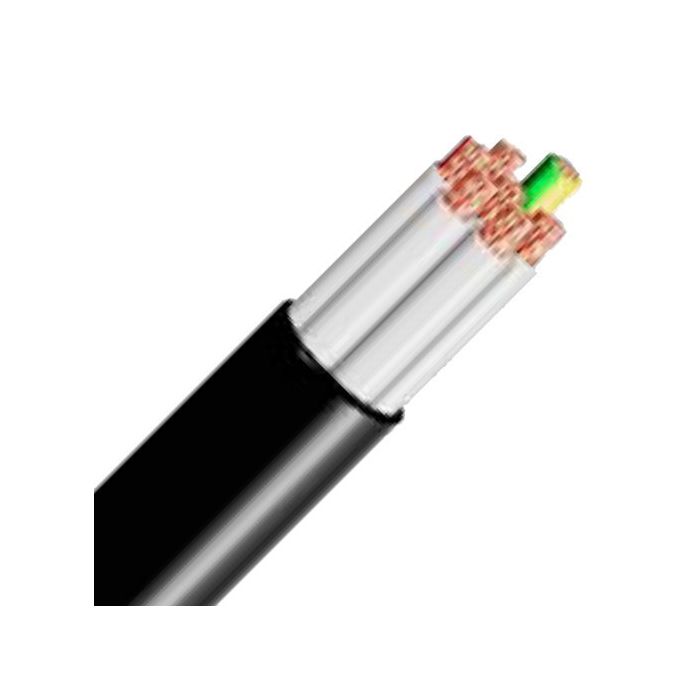

2.5 mm Black Circular Control Cable Unarmoured V-90 PVC/5V-90 PVC 100mtr
2.5 mm Black Circular Control Cable Unarmoured V-90 PVC/5V-90 PVC 100mtr
Circular Control Cable, Unarmoured, 2.5 mm, Annealed Copper, 0.6-1 kV, 10 Core + Earth, 18.6 mm Overall Diameter, 100 mtr Length, 80 mm After Installation Bend Radius, 0.8 mm Insulation Thickness, DC: 7.41 Ohm/km Conductor Resistance, Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, 75 deg C, AS/NZS 5000.1
Brand | Generic |
---|---|
Standard Pack Size | 100 |
UNSPSC Class | 26121600 |
UOM | MTR |
Vendor Product | 20199935 |
Bend Radius | 80 mm After Installation |
Conductor Resistance | DC: 7.41 Ohm/km |
Conductor Size | 2.5 mm |
Conductor Type | Annealed Copper |
Core Colours | Numerals |
Insulation Material | V-90 PVC |
Insulation Thickness | 0.8 mm |
Length | 100 mtr |
Number of Cores | 10 Core + Earth |
Overall Diameter | 18.6 mm |
Product Type | Circular Control Unarmoured |
Sheath Colour | Black |
Standards | AS/NZS 5000.1 |
Sheath Material | 5V-90 PVC |
Temperature | 75 deg C |
Voltage | 0.6-1 kV |
Description
Circular Control Cable, Unarmoured, 2.5 mm, Annealed Copper, 0.6-1 kV, 10 Core + Earth, 18.6 mm Overall Diameter, 100 mtr Length, 80 mm After Installation Bend Radius, 0.8 mm Insulation Thickness, DC: 7.41 Ohm/km Conductor Resistance, Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, 75 deg C, AS/NZS 5000.1
