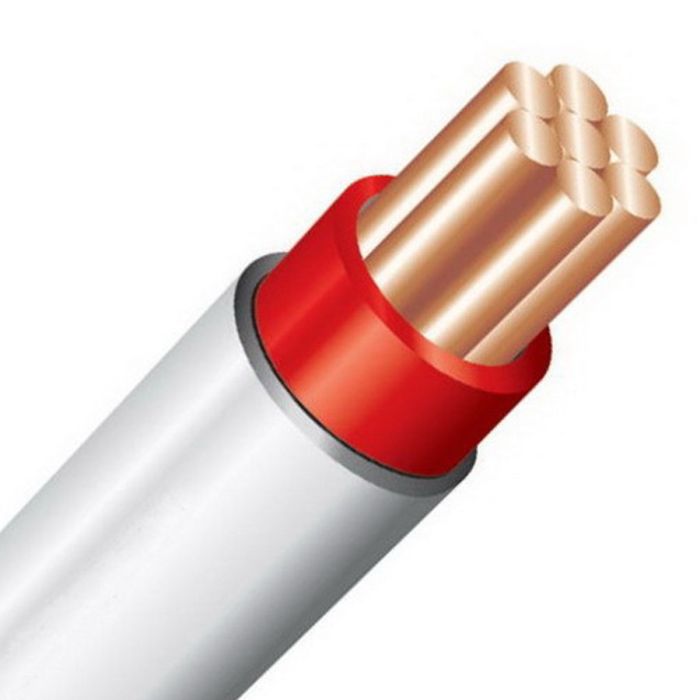

16mm SDI Cable Red 500mtr
16mm SDI Cable Red 500mtr
In stock
SKU
CBL16SDIRD-5
Single Core Double Insulated Cable, 16 mm, Plain Annealed Copper, 450/750 Volt, 7/1.7 mm Strands, 5.1 mm Nominal Diameter, 9.4 mm Overall Diameter, 40 mm Bend Radius, 1 mm Insulation Thickness, Conductor Resistance: DC: 1.15 Ohm/km, V-90 PVC Insulation, PVC Sheath, Red Core, White Sheath, 75 deg C
| Brand | Generic |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199446 |
Description
Single Core Double Insulated Cable, 16 mm, Plain Annealed Copper, 450/750 Volt, 7/1.7 mm Strands, 5.1 mm Nominal Diameter, 9.4 mm Overall Diameter, 40 mm Bend Radius, 1 mm Insulation Thickness, Conductor Resistance: DC: 1.15 Ohm/km, V-90 PVC Insulation, PVC Sheath, Red Core, White Sheath, 75 deg C
