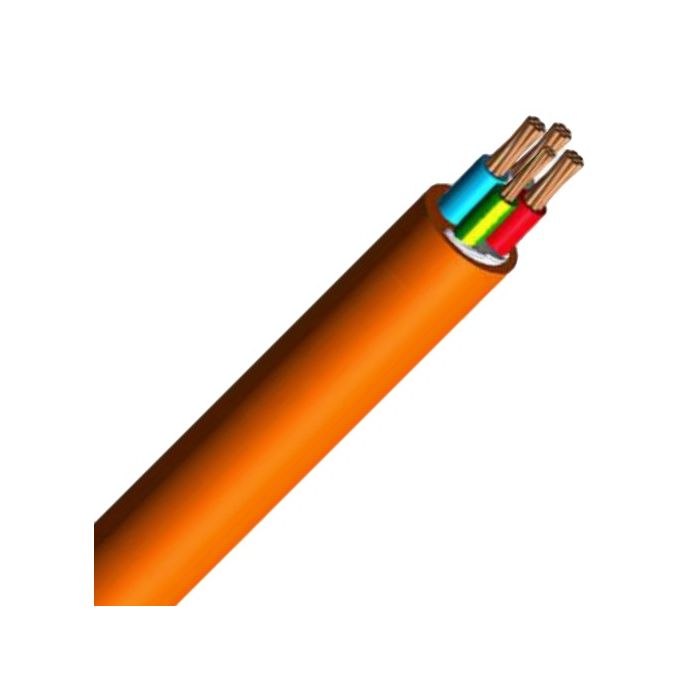

10mm Orange Circular Cable Unarmoured PVC/PVC 100mtr
10mm Orange Circular Cable Unarmoured PVC/PVC 100mtr
In stock
SKU
CBL10/3CEOC
Circular Power Cable, Unarmoured, 3 Core & Earth, 10mm, Plain Annealed Copper, 0.6/1 kV, 7/1.35mm Strands, 4.1mm Nominal Diameter, 4mm Earth Conductor, 18.4mm Overall Diameter, 70mm Bend Radius, 1mm Insulation Thickness, Conductor Resistance: DC - 1.83 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 75 deg C, AS/NZS 5000.1
| Brand | Generic |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199646 |
| Bend Radius | 70 mm |
| Conductor Resistance | DC: 1.83 Ohm/km |
| Conductor Size | 10 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Earth Conductor Size | 4 mm |
| Insulation Thickness | 1 mm |
| Insulation Material | PVC |
| Nominal Diameter | 4.1 mm |
| Overall Diameter | 18.4 mm |
| Number of Cores | 3 Core + Earth |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Standards | AS/NZS 5000.1 |
| Stranding | 7/1.35 mm |
| Temperature | 75 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Power Cable, Unarmoured, 3 Core & Earth, 10mm, Plain Annealed Copper, 0.6/1 kV, 7/1.35mm Strands, 4.1mm Nominal Diameter, 4mm Earth Conductor, 18.4mm Overall Diameter, 70mm Bend Radius, 1mm Insulation Thickness, Conductor Resistance: DC - 1.83 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 75 deg C, AS/NZS 5000.1
