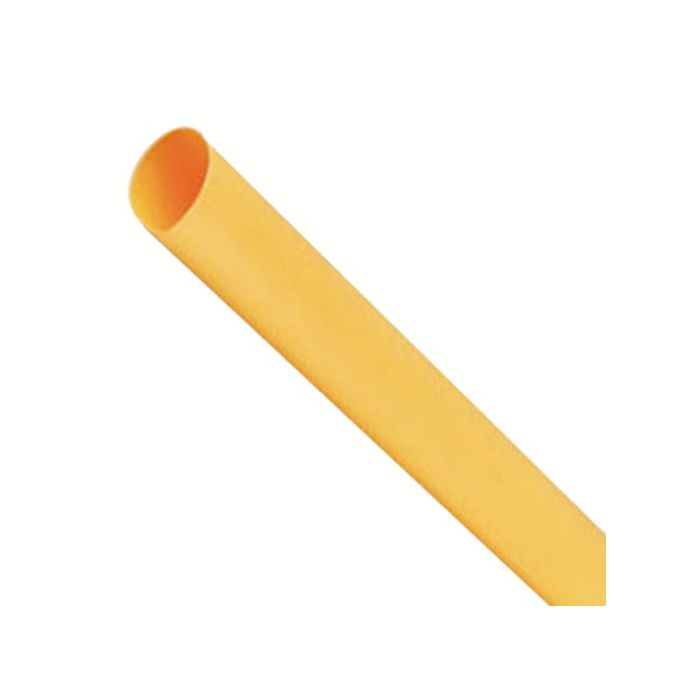

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 25.4-12.7mm 50M Yellow

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 25.4-12.7mm 50M Yellow

In stock
SKU
CAAXLP25-Y
The CABAC XLP range of thin wall heat shrink tubing is used to insulate, protect and colour code conductors in a range of applications related to the electrical and associated industries. This general-purpose heat shrink provides electrical and mechanical protection, while also defending against environmental factors such as common fluids and/or solvents. Our thin wall heat shrink sleeving is flexible, flame retardant, and resistant to impact, abrasion and UV radiation. The XLP range of heat shrink tubing is made from polyolefin that has been cross-linked using high-energy electron beam technology. Upon the application of heat, the tubing will shrink down to approximately 50% of its pre-shrink diameter to deliver tight-fitting electrical and environmental insulation.
More Information
Features
  • Resistant to common fluids, solvents and abrasion
  • UV resistant
Brand Cabac
Range Name XLP Tubing
Standard Pack Size 50
UNSPSC Class 39121700
UOM MTR
Vendor Product XLP25Y
Colour Yellow
Elongation 400%
Dielectric Strength 20 kV/mm
Flammability Rating ASTM D2671/VW1
Length 50 mtr
Lining Type Plain Unlined
Product Type Heatshrink Tubing
Shrink Diameter From 25.4 mm
Shrink Ratio 2:1
Shrink Diameter To 12.7 mm
Temperature -75 to 135 Deg C
Tensile Strength 10.4 Mpa
Shrink Temperature 105 deg C
Voltage 600 Volt
Wall Type Thin
Wall Thickness Recovered 0.87 mm

Description

The CABAC XLP range of thin wall heat shrink tubing is used to insulate, protect and colour code conductors in a range of applications related to the electrical and associated industries. This general-purpose heat shrink provides electrical and mechanical protection, while also defending against environmental factors such as common fluids and/or solvents. Our thin wall heat shrink sleeving is flexible, flame retardant, and resistant to impact, abrasion and UV radiation. The XLP range of heat shrink tubing is made from polyolefin that has been cross-linked using high-energy electron beam technology. Upon the application of heat, the tubing will shrink down to approximately 50% of its pre-shrink diameter to deliver tight-fitting electrical and environmental insulation.
