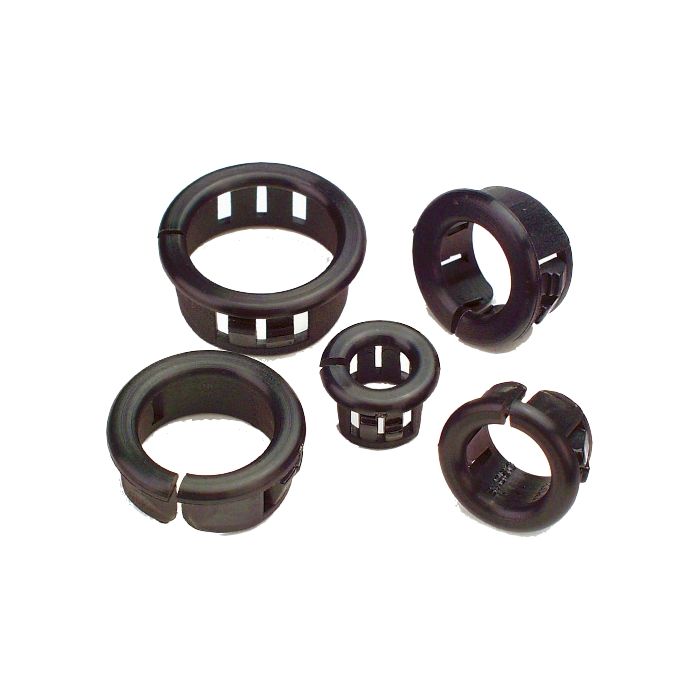

Cabac Snap Bushing Split 19 mm Hole Dia Nylon 66 Black 50 Pack

Cabac Snap Bushing Split 19 mm Hole Dia Nylon 66 Black 50 Pack

In stock
SKU
CAASNSB19
CABAC split-style Nylon snap bushing is designed to protect cables from rough, raw edges on panel holes. As the name suggests, snap bushing features self contained teeth that snap in place to provide a secure fit. Once installed, the grommet creates a smooth surface that prevents the cable from being cut or chafed.. Split bushing has several advantages over regular fixed bushing. The split allows the grommet to be fitted to a range of panel hole sizes, so precision is not as critical. Additionally, the split design makes it possible for the bushing to be retrofitted to cords or wires that are already in place.
More Information
Features
  • Range taking advantage and can be retro-fitted to a cord if necessary
  • Panel hole size is not as critical
  • Fixed bushes snap into place
  • Self contained teeth for secure fit
Brand Cabac
Standard Pack Size 50
UNSPSC Class 39121700
UOM EA
Vendor Product SNSB19
Chassis Thickness 0.8-3.2 mm
Colour Black
Inside Diameter 13.1 mm
Body Material Nylon
Length 10.3 mm
Mounting Hole Diameter 19 mm
Outside Diameter 20.2 mm
Pack Size 50 Pack
Product Type Bushing

Description

CABAC split-style Nylon snap bushing is designed to protect cables from rough, raw edges on panel holes. As the name suggests, snap bushing features self contained teeth that snap in place to provide a secure fit. Once installed, the grommet creates a smooth surface that prevents the cable from being cut or chafed.. Split bushing has several advantages over regular fixed bushing. The split allows the grommet to be fitted to a range of panel hole sizes, so precision is not as critical. Additionally, the split design makes it possible for the bushing to be retrofitted to cords or wires that are already in place.
