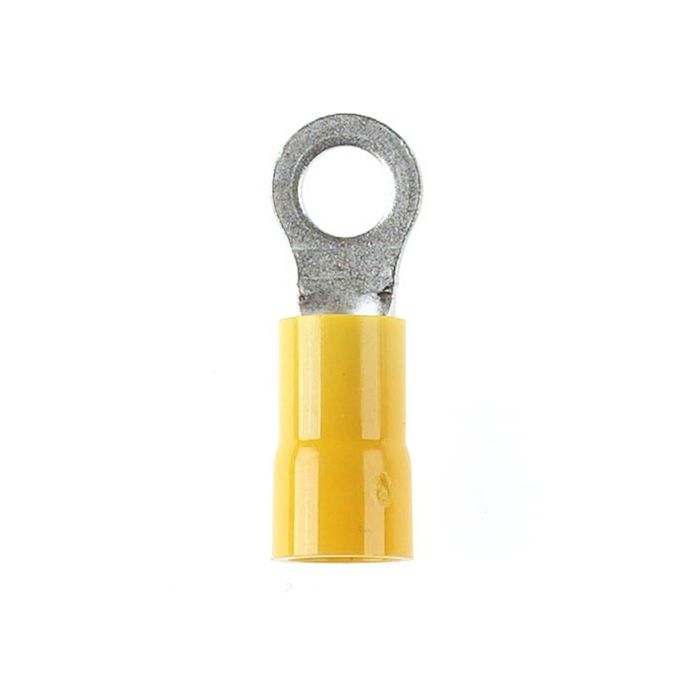

Cabac Ring Terminal Insulated Double Grip 2.5-6mm M3 Stud Yellow
Cabac Ring Terminal Insulated Double Grip 2.5-6mm M3 Stud Yellow
In stock
SKU
CAART5.5-3DG
Ring Terminal Insulated Double Grip, 2.5-6 mm, M3 Stud, Ring Terminal, 600 Volt, 200 Mpa Tensile Strength, 35% Ductile Rating, 1.738 micro-Ohm cm Resistivity, 99.5% IACS Conductivity, Copper Body, Annealed Copper, PVC Insulation, Yellow Insulation, Tin Electroplated, 75 deg C, 50 Pack
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Pre-Insulated Terminals |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | RT5.5-3DG |
| Body Material | Copper |
| Conductive Material | Annealed Copper |
| Conductivity | 99.5% IACS |
| Conductor Size | 2.5-6 mm |
| Finish | Tin Electroplated |
| Ductile Rating | 35% |
| Insulation Colour | Yellow |
| Insulation Material | PVC |
| Pack Size | 50 Pack |
| Product Type | Forked & Ring Terminals |
| Resistivity | 1.738 micro-Ohm/cm |
| Stud Size | M3 |
| Temperature | 75 deg C |
| Tensile Strength | 200 MPa |
| Terminal Type | Ring |
| Voltage Rating | 600 Volt |
Description
Ring Terminal Insulated Double Grip, 2.5-6 mm, M3 Stud, Ring Terminal, 600 Volt, 200 Mpa Tensile Strength, 35% Ductile Rating, 1.738 micro-Ohm cm Resistivity, 99.5% IACS Conductivity, Copper Body, Annealed Copper, PVC Insulation, Yellow Insulation, Tin Electroplated, 75 deg C, 50 Pack
