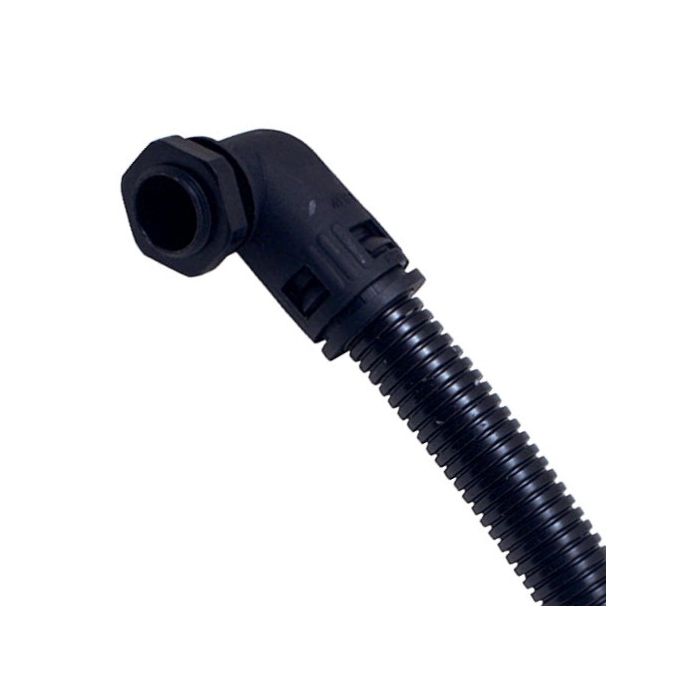

Cabflx Flexible Conduit Gland 90 deg 20mm Size M20 x 1.5 Thread Size PVC

Cabflx Flexible Conduit Gland 90 deg 20mm Size M20 x 1.5 Thread Size PVC

In stock
SKU
CAAPCM-2M20
Add to Compare
main product photo
Flexible Conduit Gland, Conduit Size: 20 mm, Thread Size: M20 x 1.5, 90 deg Angle, PVC Material, IP68 IP Rating, For Use With: Liquid Tight Conduit Fittings, Temperature: -40 to 115 deg C
More Information
More Information
Features
  • Non-metallic 90 Degree connector for liquid tight conduit, halogen free PA6 nylon, extreme low fire hazard UL94 V-0
  • Halogen, phosphor and cadmium free, UV resistant
  • Self-extinguishing, IP66, anti-static and RoHS compliant
  • Self-locking Push Fit installation onto conduit, no tool required
  • Designed to complement the CABFLX range of low fire hazard conduits, these 90-degree conduit connectors are made from high quality polyamide nylon and are free from halogen, phosphor and cadmium
  • Our high-performance fittings feature a self-locking mechanism that allows for secure, push-fit installation onto conduit, with no special tools required
  • CABFLX 90-degree conduit connectors are useful for navigating corners and changes in direction when working with flexible nylon conduit
  • These weatherproof conduit fittings offer enhanced IP68 rated ingress protection and are supplied complete with locknut
Brand Cabflx
Standard Pack Size 1
UNSPSC Class 39131700
UOM EA
Vendor Product PCM-2M20
Angle 90 deg
Conduit Size 20 mm
For Use With Liquid Tight Conduit Fittings
IP Rating IP68
Product Type Glands & Terminators
Temperature -40 to 115 deg C
Thread Size M20 x 1.5

Description

Flexible Conduit Gland, Conduit Size: 20 mm, Thread Size: M20 x 1.5, 90 deg Angle, PVC Material, IP68 IP Rating, For Use With: Liquid Tight Conduit Fittings, Temperature: -40 to 115 deg C

Infosheets
