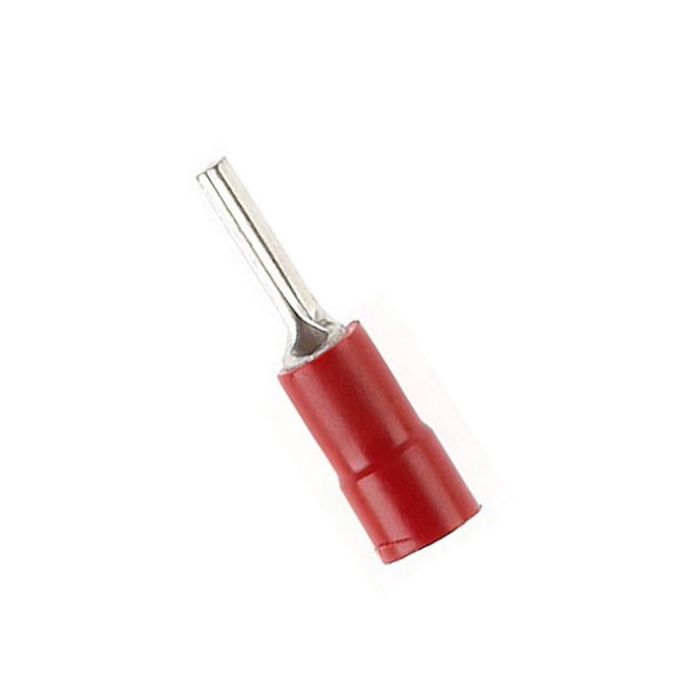

Cabac Pin Connector Insulated Single Grip 0.5-1.6mm Red
Cabac Pin Connector Insulated Single Grip 0.5-1.6mm Red
In stock
SKU
CAAPC1.25
Pin Connector Insulated Single Grip, 0.5-1.6 mm, 600 Volt, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Copper, Nylon Insulation, 100 micro-Ohm Insulation Resistance, Red Insulation, Tin Electroplated, 105 deg C
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Pre-Insulated Terminals |
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | PC1.25 |
| Conductive Material | Copper |
| Conductivity | 99.5% IACS |
| Conductor Size | 0.5-1.6mm |
| Ductile Rating | 35% |
| Finish | Tin Electroplated |
| Insulation Colour | Red |
| Insulation Material | Nylon |
| Insulation Resistance | 100 micro-Ohm |
| Min. Breakdown Voltage | 1.5 kV |
| Product Type | Blade & Pin Terminals |
| Resistivity | 1.738 micro-Ohm/cm |
| Temperature | 105 deg C |
| Tensile Strength | 200 MPa |
| Voltage Rating | 600 Volt |
Description
Pin Connector Insulated Single Grip, 0.5-1.6 mm, 600 Volt, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Copper, Nylon Insulation, 100 micro-Ohm Insulation Resistance, Red Insulation, Tin Electroplated, 105 deg C
