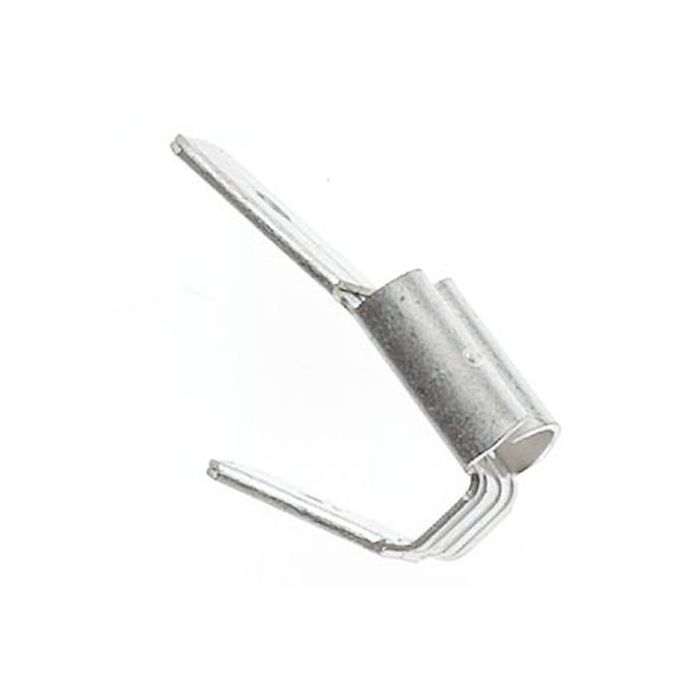

Cabac Quick Connect Piggyback Adaptor Un-Insulated 0.5-1.6mm 6.4/0.8mm Tab
Cabac Quick Connect Piggyback Adaptor Un-Insulated 0.5-1.6mm 6.4/0.8mm Tab
In stock
SKU
CAAPBA6.4
QC Terminal Piggyback Un-Insulated, 0.5-1.6 mm, 300 Volt, 1.5 kV Min. Breakdown Voltage, 6.4 x 0.8 mm Tab Size, 580 Mpa Tensile Strength, 6% Ductile Rating, Brass, 100 micro-Ohm Insulation Resistance, Tin Electroplated, 145 deg C, 50 Pack
| Features |
|
|---|---|
| Brand | Cabac |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | PBA6.4 |
| Conductive Material | Brass |
| Conductor Size | 0.5-1.6mm |
| Finish | Tin Electroplated |
| Ductile Rating | 6% |
| Insulation Resistance | 100 micro-Ohm |
| Min. Breakdown Voltage | 1.5 kV |
| Pack Size | 50 Pack |
| Product Type | Quick Connect Terminals |
| Tab Size | 6.4 x 0.8 mm |
| Tensile Strength | 580 MPa |
| Temperature | 145 deg C |
| Voltage Rating | 300 Volt |
Description
QC Terminal Piggyback Un-Insulated, 0.5-1.6 mm, 300 Volt, 1.5 kV Min. Breakdown Voltage, 6.4 x 0.8 mm Tab Size, 580 Mpa Tensile Strength, 6% Ductile Rating, Brass, 100 micro-Ohm Insulation Resistance, Tin Electroplated, 145 deg C, 50 Pack
