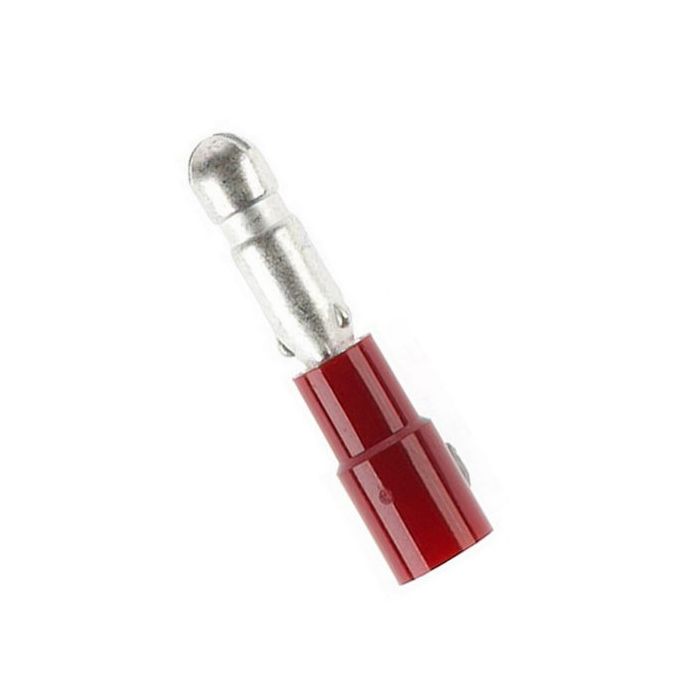

Cabac Bullet Connector Male Insulated Double Grip 0.5-1.6mm 1C Red 100 Pack
Cabac Bullet Connector Male Insulated Double Grip 0.5-1.6mm 1C Red 100 Pack
In stock
SKU
CAAMBC1.25DG
Bullet Connector Male Insulated Double Grip, 0.5-1.6 mm, 1 Conductors, 300 Volt, 12 Amp, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Funnel Entry Terminal, Annealed Copper, PVC Insulation, Red Insulation, Tin Electroplated, -40 to 105 deg C, 100 Pack
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Pre-Insulated Terminals |
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | MBC1.25DG |
| Conductive Material | Annealed Copper |
| Conductivity | 99.5% IACS |
| Conductor Size | 0.5-1.6mm |
| Current Rating | 12 Amp |
| Ductile Rating | 35% |
| Finish | Tin Electroplated |
| Insulation Material | PVC |
| Min. Breakdown Voltage | 1.5 kV |
| Insulation Colour | Red |
| Number of Conductors | 1 |
| Pack Size | 100 Pack |
| Product Type | Splice & Bullet Connectors |
| Resistivity | 1.738 micro-Ohm/cm |
| Temperature | -40 to 105 deg C |
| Terminal Type | Funnel Entry |
| Tensile Strength | 200 MPa |
| Voltage Rating | 300 Volt |
Description
Bullet Connector Male Insulated Double Grip, 0.5-1.6 mm, 1 Conductors, 300 Volt, 12 Amp, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Funnel Entry Terminal, Annealed Copper, PVC Insulation, Red Insulation, Tin Electroplated, -40 to 105 deg C, 100 Pack
