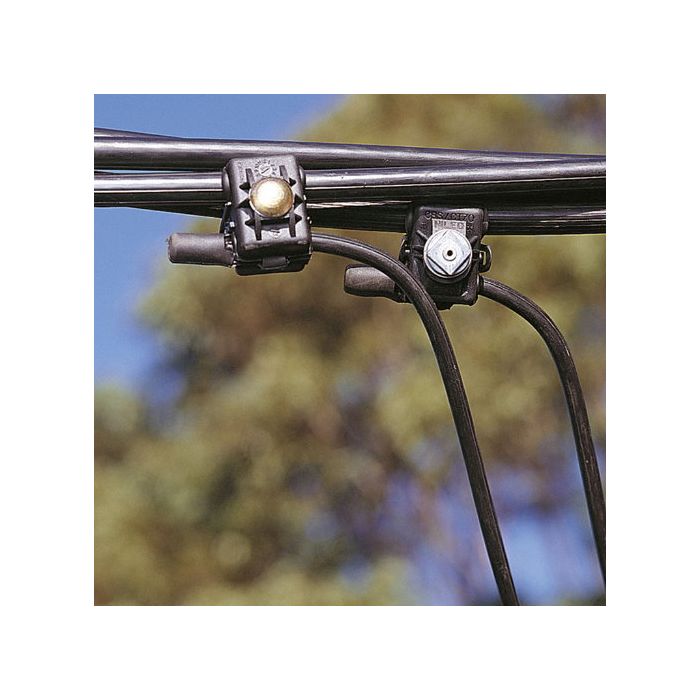

Cabac ABC Insulation Piercing Connector with Shear Head Bolts 35-150mm Aluminium Teeth

Name: ABC Insulation Piercing Connector w/Shear Bolts 35-150mm
SKU: CAAIPC150/35
Availability: InStock

In stock

SKU

CAAIPC150/35

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

ABC Insulation Piercing Connector with Shear Head Bolts, 35-6 mm Conductor Branch Cable, 150-35 mm Conductor Main Cable, 14 N/m,1 Fastener, Fastener A/F: 13 mm, Aluminium Teeth Conductor, 125 deg C, with Shear Head Bolts

More Information

More Information
Features	Designed to tap off low voltage XLPE insulated ABC cables using a unique insulation piercing technique Suitable for all weather applications and corrosion resistant Connections can be made fully live in minutes Suitable for aluminium and copper Designed for all weather applications, corrosion resistant, ease of installation and low cost Connections can be made fully live in minutes, without time consuming crimping, applying insulation or sealing compound Body is moulded from tough, resilient, glass filled nylon for long service life exposed to weather (particularly sunlight) and is rounded to prevent damage to adjacent conductors Hardware is stainless steel, which does not corrode, allowing the IPC to be undone at any time in the future The bolt has a stainless steel pressure washer which maintains clamping pressure Shear head is made from glass filled nylon, for controlled shear torque
Brand	Cabac
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	IPC150/35
Conductive Material	Aluminium Teeth
Conductor Size	35-6 mm Branch Cable/150-35 mm Main Cable
Product Type	Insulation Piercing Connectors
Temperature	125 deg C
Torque	14 Nm
