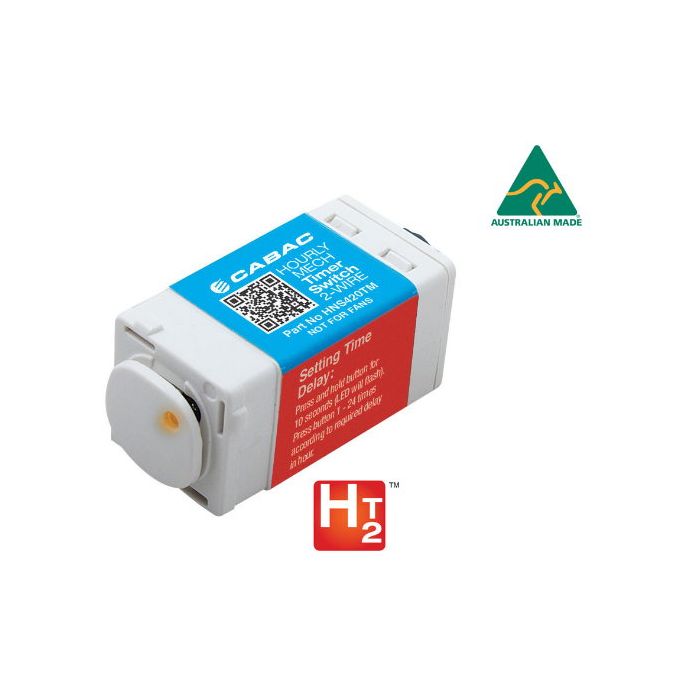

Cabac Timer Switch Mechanism Push Button Programmable Time Delay 1-24 hrs ON/OFF 1.7A 230/240V White

Cabac Timer Switch Mechanism Push Button Programmable Time Delay 1-24 hrs ON/OFF 1.7A 230/240V White

In stock
SKU
CAAHNS420TM
The S-Click HNS420TM is a 2-in-1 programmable timer switch that automatically turns lights or small heaters off after a pre-set time has elapsed. Time delay can be set in hour increments from 1 to 24 hours - perfect for areas that need to be lit for extended periods and for heated appliances like towel rails. Supporting both timer and non-timer functions, this unit also allows for lights and appliances to be manually turned off with a quick tap. Our hour timer switch is ideal for domestic use and can be retrofitted to most installed lights. An amber LED indicates device status and gives an expiry warning before time-out. The timer settings are retained even after loss of power and can be configured to power up on or off after loss of mains power. Programming your chosen off time couldn't be simpler. A sustained 10 second press of the button enters programming mode. Just tap the button once for each hour of run time you require, up to 24 hours. Programming mode expires 10 seconds after the last tap, and the unit then commits your settings to memory. If you happen to press the button more than 24 times, the maximum run time of 24 hours will be stored. The HNS420TM is also equipped with Boost Mode, a convenient bonus feature that allows users to double the program run time (up to the maximum 24 hours). Instead of a quick tap, a sustained two second press of the button will initiate boost mode and the timer program will be automatically extended; for example, a 2-hour program would be extended to 4 hours.
More Information
Features
  • Supports timer and boost modes of operation
  • Amber LED indicates device status
  • User programmable time out period
  • Programmable in 1 hour increments from 1 to 24 hour
  • When on, quick tap turns power off
  • Quick LED flashing within 10 minute of time out provides expiry warning
  • Retains setting even after loss of power
  • Remote switch compatible
  • Time set to 1 hour out of box
Brand Cabac
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product HNS420TM
Colour White
Control Type Pushbutton
Current 1.7 Amp
For Use With Lights and Small Heaters
Frequency 50 Hz
Number of Wires 2 Wire
Switch Function On/Off Button
Temperature 0 to 50 deg C
Terminal Type Screw

Description

The S-Click HNS420TM is a 2-in-1 programmable timer switch that automatically turns lights or small heaters off after a pre-set time has elapsed. Time delay can be set in hour increments from 1 to 24 hours - perfect for areas that need to be lit for extended periods and for heated appliances like towel rails. Supporting both timer and non-timer functions, this unit also allows for lights and appliances to be manually turned off with a quick tap. Our hour timer switch is ideal for domestic use and can be retrofitted to most installed lights. An amber LED indicates device status and gives an expiry warning before time-out. The timer settings are retained even after loss of power and can be configured to power up on or off after loss of mains power. Programming your chosen off time couldn't be simpler. A sustained 10 second press of the button enters programming mode. Just tap the button once for each hour of run time you require, up to 24 hours. Programming mode expires 10 seconds after the last tap, and the unit then commits your settings to memory. If you happen to press the button more than 24 times, the maximum run time of 24 hours will be stored. The HNS420TM is also equipped with Boost Mode, a convenient bonus feature that allows users to double the program run time (up to the maximum 24 hours). Instead of a quick tap, a sustained two second press of the button will initiate boost mode and the timer program will be automatically extended; for example, a 2-hour program would be extended to 4 hours.
