Cabac Cable Gland EMC VSD Screened Cable Shielded-Long M20 8-13mm IP68
Cabac Cable Gland EMC VSD Screened Cable Shielded-Long M20 8-13mm IP68
In stock
SKU
CAAGU20EMC/L

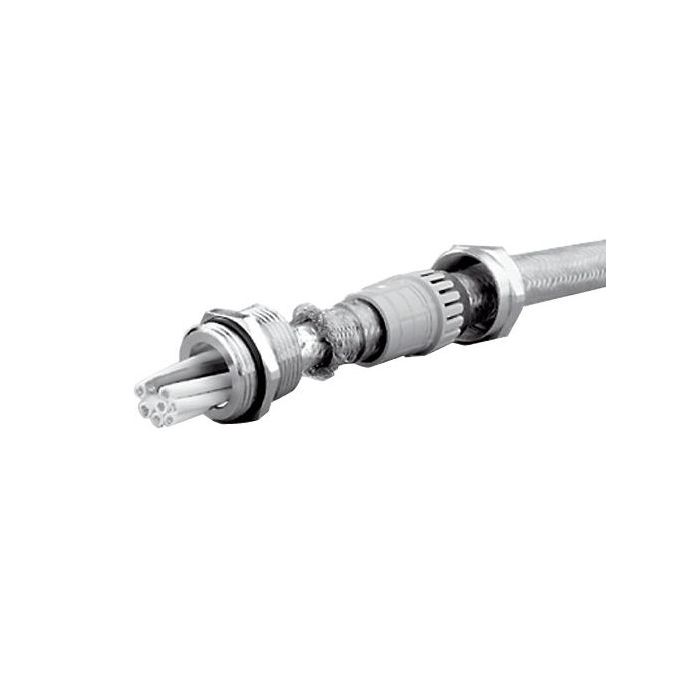

Our range of easy to use EMC glands are designed for the effective termination of mesh or foil shielded EMC cable. The product is comprised of a corrosion resistant, nickel plated brass body with a polyamide insert and NBR rubber seal. The gland utilises a camera-shutter type cable seal to achieve an IP68 (5 bar) waterproof rating whilst still supporting a wide cable diameter range. The product has integrated strain relief capability and includes a cable shield connection.
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Type EMC |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | GU20EMC/L |
| Body Material | Brass |
| Finish | Nickel Plated |
| IP Rating | IP68 |
| Max. Sheath OD | 13 mm |
| Min. Sheath OD | 8 mm |
| Product Type | Cable Glands EMC |
| Seal Material | NBR |
| Temperature | 20 to 100 deg C |
| Thread Length | 10 mm |
| Thread Size | M20 |
| Width Across Flats | 22 mm |
Description
Our range of easy to use EMC glands are designed for the effective termination of mesh or foil shielded EMC cable. The product is comprised of a corrosion resistant, nickel plated brass body with a polyamide insert and NBR rubber seal. The gland utilises a camera-shutter type cable seal to achieve an IP68 (5 bar) waterproof rating whilst still supporting a wide cable diameter range. The product has integrated strain relief capability and includes a cable shield connection.
