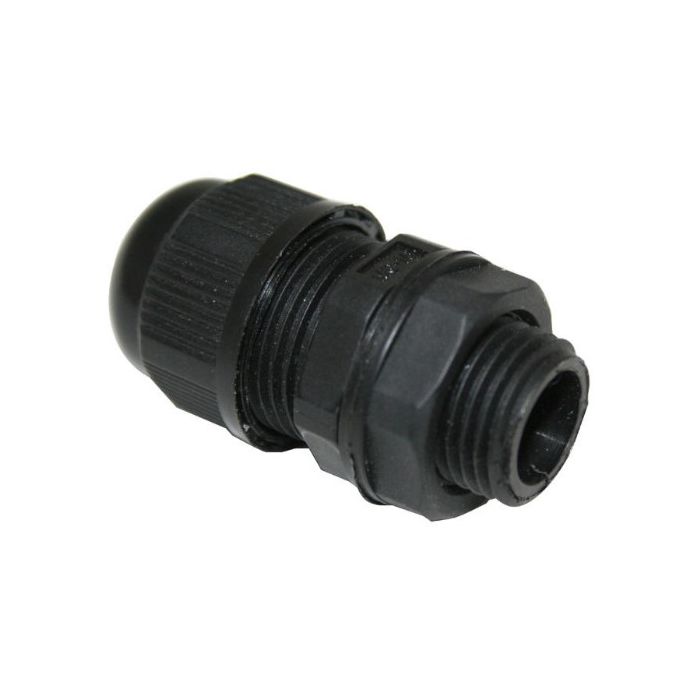

Cabac Cable Gland General Purpose Glass Reinforcing Polyamide 6 M50 27-38mm IP68
Cabac Cable Gland General Purpose Glass Reinforcing Polyamide 6 M50 27-38mm IP68
In stock
SKU
CAAGN50
The CABAC premium range of nylon metric glands are exceptional quality and designed to suit a variety of applications and conditions. These glands are manufactured from halogen free, PA 66 nylon with built-in strain relief blades to protect the cable. The range is water resistant and UV stabilised so that it can withstand extended exposure to the outdoors. The fluid tight seal works on a camera shutter principle that delivers IP68 rated protection to 5 bar pressure. Other features include excellent chemical resistance and a long metric thread to suit Australian requirements. CABAC makes it easy to have the right gland on hand when you need it. Our premium range of nylon glands clamp to a wide range of cable diameters, so selecting and maintaining stock inventory is simple. Supplied complete with locknut and EPDM rubber washer.
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Premium Range |
| Standard Pack Size | 2 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | GN50 |
| Body Material | Glass Reinforcing Polyamide |
| IP Rating | IP68 |
| Max. Sheath OD | 38 mm |
| Finish | Black |
| Min. Sheath OD | 27 mm |
| Product Type | Cable Glands Non-Metal |
| Seal Material | Neoprene |
| Thread Length | 18 mm |
| Temperature | -40 to 100 deg C |
| Thread Size | M50 |
| Width Across Flats | 59.2 mm |
Description
The CABAC premium range of nylon metric glands are exceptional quality and designed to suit a variety of applications and conditions. These glands are manufactured from halogen free, PA 66 nylon with built-in strain relief blades to protect the cable. The range is water resistant and UV stabilised so that it can withstand extended exposure to the outdoors. The fluid tight seal works on a camera shutter principle that delivers IP68 rated protection to 5 bar pressure. Other features include excellent chemical resistance and a long metric thread to suit Australian requirements. CABAC makes it easy to have the right gland on hand when you need it. Our premium range of nylon glands clamp to a wide range of cable diameters, so selecting and maintaining stock inventory is simple. Supplied complete with locknut and EPDM rubber washer.
