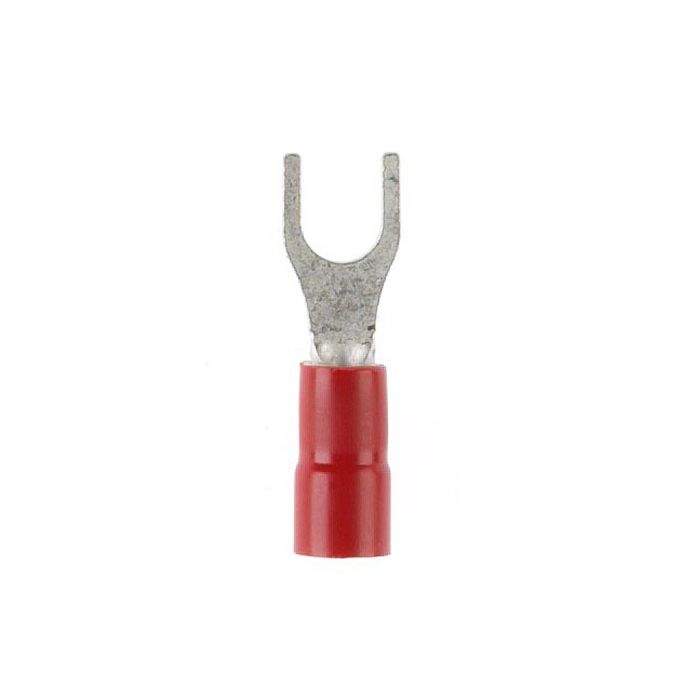

Cabac Forked Spade Insulated Double Grip 0.5-1.6mm M5 Stud Red
Cabac Forked Spade Insulated Double Grip 0.5-1.6mm M5 Stud Red
In stock
SKU
CAAFS1.25-5DG
Forked Spade Terminal Insulated Double Grip, 0.5-1.6 mm, M5 Stud, Fork Spade Terminal, 600 Volt, 18 Amp, 4-5 mm Wire Strip Length, 200 Mpa Tensile Strength, 35% Ductile Rating, 1.738 micro-Ohm cm Resistivity, 99.5% IACS Conductivity, Copper Body, Copper, PVC Insulation, Red Insulation, Tin Electroplated, 75 deg C, 50 Pack
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Pre-Insulated Terminals |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | FS1.25-5DG |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductivity | 99.5% IACS |
| Conductor Size | 0.5-1.6mm |
| Current Rating | 18 Amp |
| Finish | Tin Electroplated |
| Ductile Rating | 35% |
| Insulation Colour | Red |
| Insulation Material | PVC |
| Pack Size | 50 Pack |
| Product Type | Forked & Ring Terminals |
| Resistivity | 1.738 micro-Ohm/cm |
| Stud Size | M5 |
| Tensile Strength | 200 MPa |
| Temperature | 75 deg C |
| Terminal Type | Fork Spade |
| Voltage Rating | 600 Volt |
| Wire Strip Length | 4-5 mm |
Description
Forked Spade Terminal Insulated Double Grip, 0.5-1.6 mm, M5 Stud, Fork Spade Terminal, 600 Volt, 18 Amp, 4-5 mm Wire Strip Length, 200 Mpa Tensile Strength, 35% Ductile Rating, 1.738 micro-Ohm cm Resistivity, 99.5% IACS Conductivity, Copper Body, Copper, PVC Insulation, Red Insulation, Tin Electroplated, 75 deg C, 50 Pack
