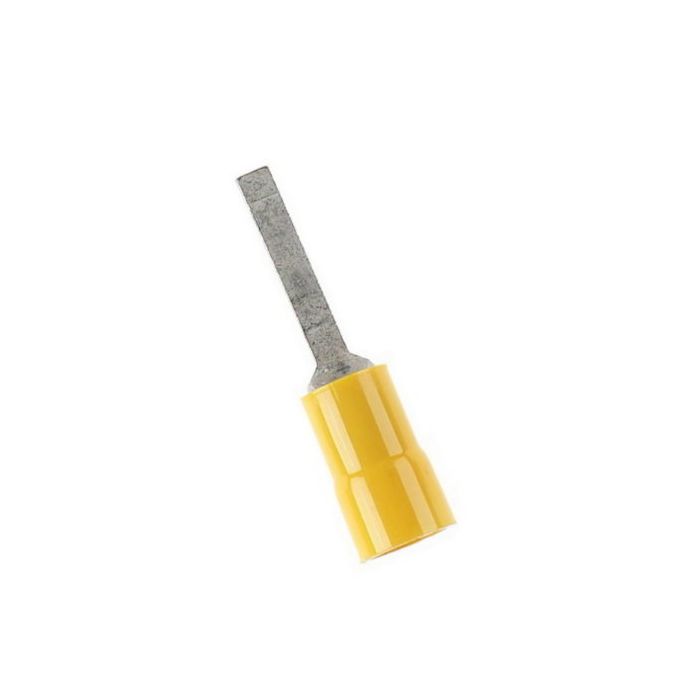

Cabac Flat Blade Insulated Double Grip 16.6mm Blade 2.5-6mm Yellow
Cabac Flat Blade Insulated Double Grip 16.6mm Blade 2.5-6mm Yellow
In stock
SKU
CAAFB5.5-3DG
Flat Blade Connector Insulated Double Grip, 2.5-6 mm, 600 Volt, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Copper, PVC Insulation, 100 micro-Ohm Insulation Resistance, Yellow Insulation, Tin Electroplated, 75 deg C, 16.6 mm Blade Length, 3 mm Width
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Pre-Insulated Terminals |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | FB5.5-3DG |
| Blade Length | 16.6 mm |
| Conductive Material | Copper |
| Conductivity | 99.5% IACS |
| Conductor Size | 2.5-6mm |
| Ductile Rating | 35% |
| Finish | Tin Electroplated |
| Insulation Colour | Yellow |
| Insulation Material | PVC |
| Insulation Resistance | 100 micro-Ohm |
| Min. Breakdown Voltage | 1.5 kV |
| Product Type | Blade & Pin Terminals |
| Resistivity | 1.738 micro-Ohm/cm |
| Temperature | 75 deg C |
| Tensile Strength | 200 MPa |
| Voltage Rating | 600 Volt |
| Width | 3 mm |
Description
Flat Blade Connector Insulated Double Grip, 2.5-6 mm, 600 Volt, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Copper, PVC Insulation, 100 micro-Ohm Insulation Resistance, Yellow Insulation, Tin Electroplated, 75 deg C, 16.6 mm Blade Length, 3 mm Width
