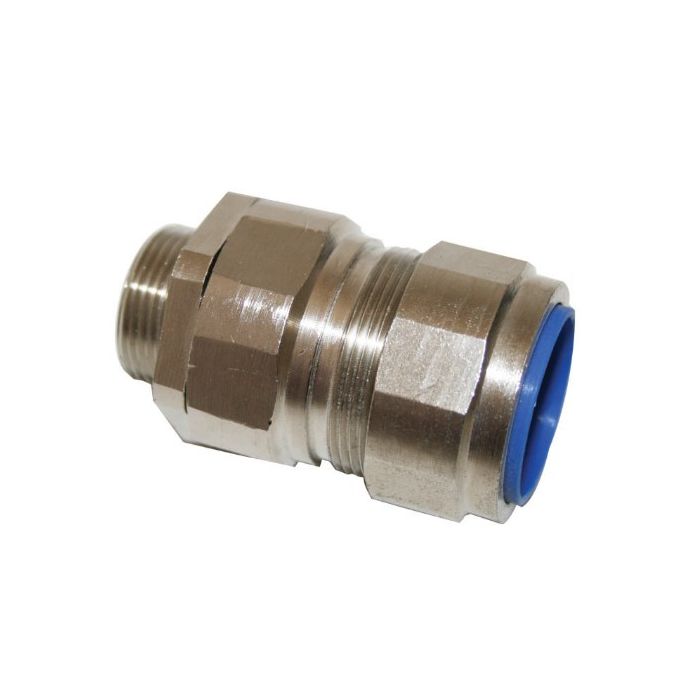

Cabac Metal Cable Gland Armoured General Purpose 15-20.9mm M20 IP66
Cabac Metal Cable Gland Armoured General Purpose 15-20.9mm M20 IP66
In stock
SKU
CAACW20
The CABAC range of armoured metal glands are a weatherproof solution when working with steel wire armoured cable. The brass body is protected by anti-corrosive nickel plating that prevents deterioration. A neoprene rubber seal to the cable outer jacket excludes dust and water with a protection rating of IP66.Each gland can accommodate a generous cable range to simplify product selection. Suitable for PVC and XLPE insulated armoured cables. To install, simply follow normal gland installation practices. Our SWA glands feature a wedge seal which deflects inwards. This unique feature makes our product easier to work with than conventional glands and saves the installer valuable time.
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Type CW |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CW20 |
| Body Material | Brass |
| Finish | Nickel Plated |
| IP Rating | IP66 |
| Max. Armour Wire | 1.25 mm |
| Max. Bedding OD | 13.9 mm |
| Max. Sheath OD | 20.9 mm |
| Min. Armour Wire | 0.9 mm |
| Min. Sheath OD | 15 mm |
| Product Type | Cable Glands Metal |
| Seal Material | Neoprene |
| Thread Length | 15 mm |
| Thread Size | M20 |
| Width Across Corners | 30 mm |
Description
The CABAC range of armoured metal glands are a weatherproof solution when working with steel wire armoured cable. The brass body is protected by anti-corrosive nickel plating that prevents deterioration. A neoprene rubber seal to the cable outer jacket excludes dust and water with a protection rating of IP66.Each gland can accommodate a generous cable range to simplify product selection. Suitable for PVC and XLPE insulated armoured cables. To install, simply follow normal gland installation practices. Our SWA glands feature a wedge seal which deflects inwards. This unique feature makes our product easier to work with than conventional glands and saves the installer valuable time.
