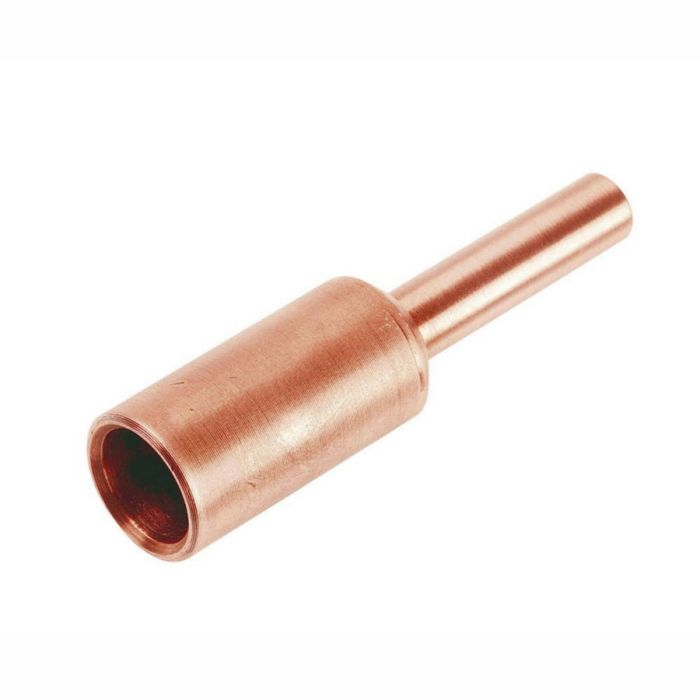

Cabac Crimp Lug Stalk Type A Copper 16mm M6 Stud 22mm L Stalk 53mm OAL
Cabac Crimp Lug Stalk Type A Copper 16mm M6 Stud 22mm L Stalk 53mm OAL
In stock
SKU
CAACS16/6
The CABAC copper stalk range are crimped with standard hexagon dies for the equivalent copper lug. The tooling is dimensionally compatible with standard Australian tooling.
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Stalk Lugs |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CS16/6 |
| Barrel Length | 19 mm |
| A-F Hex Die | 6.3 mm |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductivity | 99.7% IACS |
| Conductor Size | 16 mm |
| Crimping Die | HT130-C-16 |
| Ductile Rating | 40% |
| Inside Diameter | 5.5 mm |
| Number of Crimps | 1 |
| Overall Length | 53 mm |
| Stalk Diameter | M6 |
| Resistivity | 1.738 micro-Ohm/cm |
| Stalk Length | 22 mm |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 200 MPa |
Description
The CABAC copper stalk range are crimped with standard hexagon dies for the equivalent copper lug. The tooling is dimensionally compatible with standard Australian tooling.
