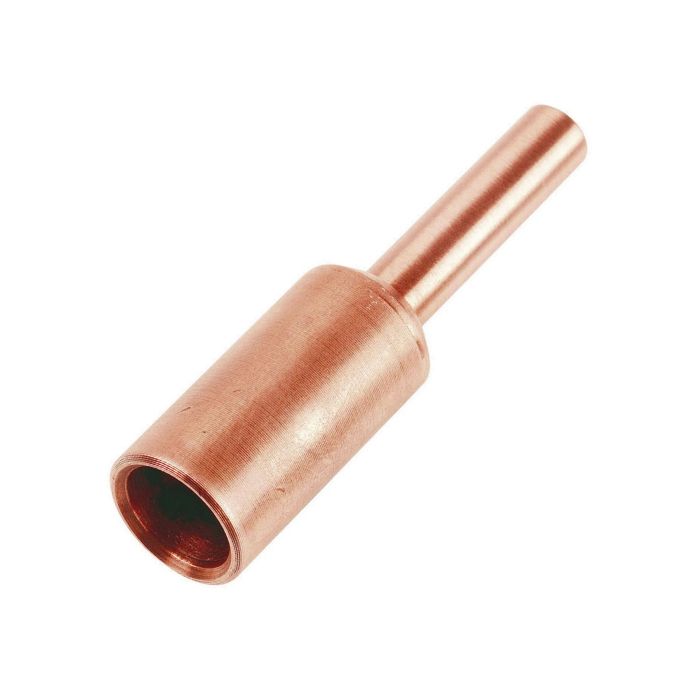

Cabac Crimp Lug Stalk Type B Copper 120mm M16 Stud 40mm L Stalk 82mm OAL
Cabac Crimp Lug Stalk Type B Copper 120mm M16 Stud 40mm L Stalk 82mm OAL
In stock
SKU
CAACS120/16
Crimp Lug, Stalk Type B Copper, 120 mm Conductor, 15.5mm Inside Diameter, M16 Stalk, 40mm Stalk Length, 82 mm Length, 30mm Barrel, 200 MPa, Ductile Rating: 40%, Resistivity: 1.738 µOhm cm, Conductivity: 99.7% IACS, Annealed Copper Body, Annealed Copper Conductor, -55 to 155 deg C, A/F Hex Die: 16.5 mm, Crimping Die: HT130-C-120, 1 Crimp Round, 2 Compact
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Stalk Lugs |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CS120/16 |
| Barrel Length | 30 mm |
| A-F Hex Die | 16.5 mm |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductivity | 99.7% IACS |
| Crimping Die | HT130-C-120 |
| Conductor Size | 120 mm |
| Ductile Rating | 40% |
| Number of Crimps | 1 Round/2 Compact |
| Inside Diameter | 15.5 mm |
| Overall Length | 82 mm |
| Resistivity | 1.738 µOhm/cm |
| Product Type | Crimp Lug Stalk Type |
| Stalk Diameter | M16 Stalk |
| Stalk Length | 40 mm |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 200 MPa |
Description
Crimp Lug, Stalk Type B Copper, 120 mm Conductor, 15.5mm Inside Diameter, M16 Stalk, 40mm Stalk Length, 82 mm Length, 30mm Barrel, 200 MPa, Ductile Rating: 40%, Resistivity: 1.738 µOhm cm, Conductivity: 99.7% IACS, Annealed Copper Body, Annealed Copper Conductor, -55 to 155 deg C, A/F Hex Die: 16.5 mm, Crimping Die: HT130-C-120, 1 Crimp Round, 2 Compact
