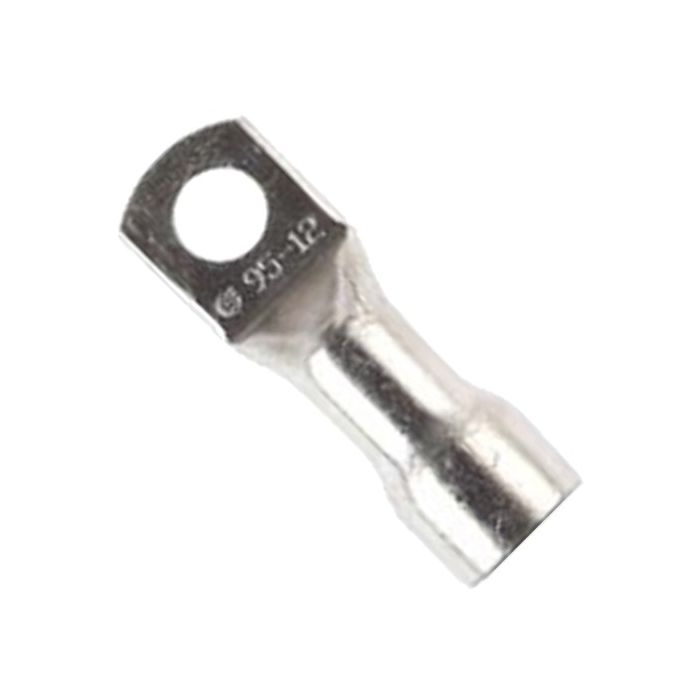

Cabac Crimp Lug Bell Mouth Double Grip Copper 95mm M12 Stud 76mm OAL
Cabac Crimp Lug Bell Mouth Double Grip Copper 95mm M12 Stud 76mm OAL
In stock
SKU
CAACAL95-12DG
Crimp Lug, Bell Mouth, Double Grip, Copper, 95 mm Conductor, M12 Stud, Flared Barrel, 38mm Barrel, 13.5 mm Flare, 76mm Overall Length, 1 Hole, Annealed Copper Body, Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C, 13.4mm Inside Diameter Barrel, 18.9mm Flare, 25mm Lug Width, 3.9mm Lug Thickness, 28mm Lug Length, 14.2mm A/F Hex Die Barrel, 18.3/150Cu Flare, 1 Crimp, 200 MPa
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Double Grip Lugs |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CAL95-12DG |
| A-F Hex Die | 14.2 mm Barrel/18.3 150Cu Flare |
| Barrel Length | 38 mm Barrel 13.5 mm Flare |
| Barrel Type | Flared |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductor Size | 95 mm |
| Inside Diameter | 13.4 mm Barrel/18.9 mm Flare |
| Finish | Tin Electroplated |
| Lug Length | 28 mm |
| Lug Thickness | 3.9 mm |
| Lug Width | 25 mm |
| Number of Crimps | 1 |
| Number of Holes | 1 Hole |
| Overall Length | 76 mm |
| Product Type | Lugs Double Grip |
| Stud Size | M12 Stud |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 200 MPa |
Description
Crimp Lug, Bell Mouth, Double Grip, Copper, 95 mm Conductor, M12 Stud, Flared Barrel, 38mm Barrel, 13.5 mm Flare, 76mm Overall Length, 1 Hole, Annealed Copper Body, Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C, 13.4mm Inside Diameter Barrel, 18.9mm Flare, 25mm Lug Width, 3.9mm Lug Thickness, 28mm Lug Length, 14.2mm A/F Hex Die Barrel, 18.3/150Cu Flare, 1 Crimp, 200 MPa
