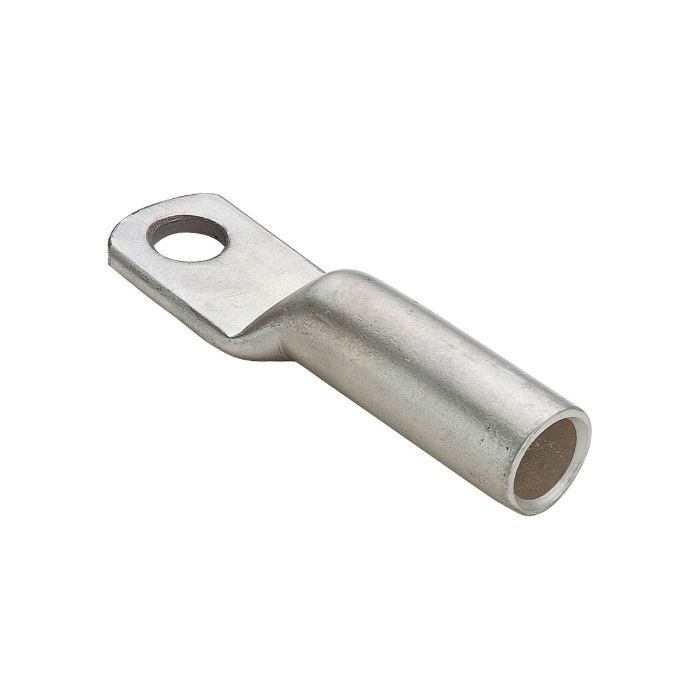

Cabac Crimp Lug Long Barrel Copper 25mm M10 Stud 62mm OAL
Cabac Crimp Lug Long Barrel Copper 25mm M10 Stud 62mm OAL
In stock
SKU
CAACAL25LB-10
Copper Long Barrel Lugs are designed for external use. There is no window present and the palms are solder sealed to stop the ingress of water. The extra long barrel allows more crimps than usual, in high stress areas, such as high voltage terminations, drop out fuses etc. The extra long barrel also allows more length for heat shrink sealing, to ensure a totally air tight seal. The Long Barrel Outdoor Style Lug is designed for crimping with standard hexagon dies (also used for the standard range of copper lugs). Made from 99.9%+ cu high conductivity copper, this lug provides the best electrical properties possible. If a longer palm with two or more stud holes is required, please see the Long Palm Long Barrel Lug (LPB Range).
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Long Barrel Lugs |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CAL25LB-10 |
| A-F Hex Die | 7.7 mm |
| Barrel Length | 35 mm |
| Barrel Type | Long |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductor Size | 25 mm |
| Crimping Die | HT130-C-25 |
| Finish | Tin Electroplated |
| Inside Diameter | 7.1 mm |
| Lug Length | 22 mm |
| Lug Thickness | 2 mm |
| Lug Width | 16 mm |
| Number of Crimps | 2 |
| Number of Holes | 1 Hole |
| Number of Strands | 19/1.35 |
| Overall Length | 62 mm |
| Palm Type | Solder Sealed |
| Stud Size | 10 mm |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 200 MPa |
Description
Copper Long Barrel Lugs are designed for external use. There is no window present and the palms are solder sealed to stop the ingress of water. The extra long barrel allows more crimps than usual, in high stress areas, such as high voltage terminations, drop out fuses etc. The extra long barrel also allows more length for heat shrink sealing, to ensure a totally air tight seal. The Long Barrel Outdoor Style Lug is designed for crimping with standard hexagon dies (also used for the standard range of copper lugs). Made from 99.9%+ cu high conductivity copper, this lug provides the best electrical properties possible. If a longer palm with two or more stud holes is required, please see the Long Palm Long Barrel Lug (LPB Range).
